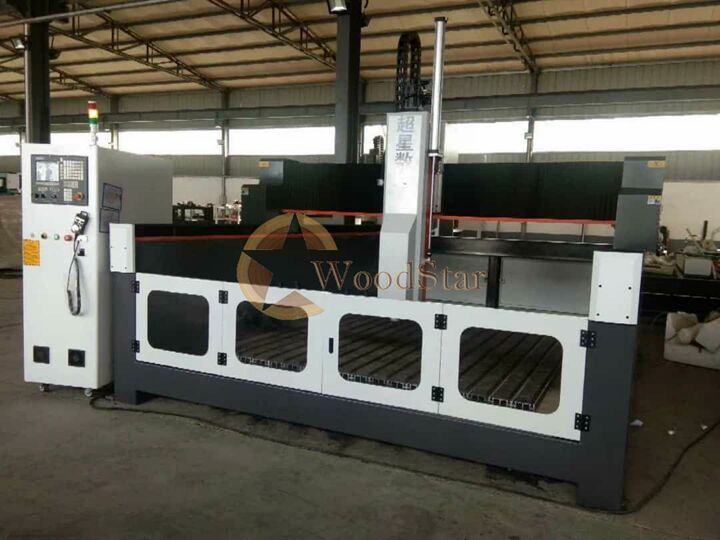

CNC Mould Making Machine

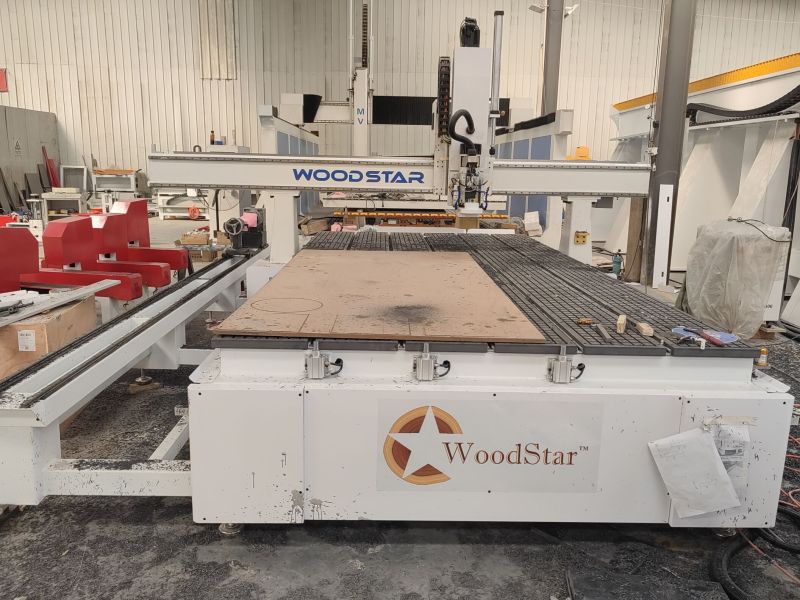

Leading Manufacturers, Exporters, Wholesaler, Distributor, Importer of CNC ROUTER WSR-1530 SERVO ATC, ERODE CNC WOOD CARVING ROUTER MACHINE, PERAMBALUR CNC WOOD CARVING ROUTER MACHINE, SALEM CNC WOOD CARVING ROUTER MACHINE, Servo 1525S CNC Router Machine and Cnc Wood Router from Coimbatore.
| Business Type | Manufacturer, Exporter |
| Driven Type | Electric |
| Color | Light Green |
| Condition | New |
| Power | 3-6kw |
| Automation Grade | Automatic, Fully Automatic, Manual, Semi Automatic |
| Application | Aluminium Cutting, Metal Material Cutting, Plastic Cutting, Wood Cutting |
| Certification | ISO 9001:2015 |
| Voltage | Voltage 380V,Three Phase 50hz |
| Type | Mini Cnc Router |
| Weight | 700-800kg |
| Warranty | 2years |
| Country of Origin | India |
| Working Area | 1500×3000×300 Mm |
| tube structure | Heavy weld tube structure |
| kw | 9.0 kw ATC Air Cooled Spindle 24000 RPM |
| Horizontal spindle | 6.0Kw with 2 holders |
| VFD | Fuling VFD |
| LNC control | Taiwan LNC control system with handwheel |
| Leadshine | Leadshine 1500W AC- Servo Motor and drive with brake |
| Rapid speed | 45,000 mm/min |
| Working speed | 25,000 mm/min |
| Linear Rail | Taiwan 25 Mm High Load Linear Rail and Bearing |
| Taiwan Tbi | Taiwan Tbi 32mm Z Ball Screw |
| Cables | GERMAN LAPP cables |
| Helical Harden | 1.25 M helical harden rack and pinion |
| Gearbox | JAPAN Shimpo Pl Gearbox |
| Vacuum table | Vacuum table with 11kw air vacuum pump |
| Air Pump | 5.5kw air pump with two bags Dust collector |
| Support program | Support program: G codes and M codes |
| Software | Artcam and v carve aspire |
| Lubrication | Auto Oil lubricating system |
| Accessories | Standard tools and accessories include |
| Product Code | WSR1325SERVO HT |
| Port | CHENNAI |
| Payment Terms | T/T |
| Delivery Time | 45 DAYS |
| Packaging Details | 3300 X 2300 X 2200 MM |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors,
- Transportation
- 12,000 + designs (800 GB)
- Gross weight 1800 kgs, Total power 9.0 Hp
- Overall dimension: 3200 x 2300 x 2300 mm
- PRICE : 21,18,000 + GST18%
| Business Type | Manufacturer, Exporter |
| Brand Name | woodstar |
| Driven Type | Elecric |
| Color | Green |
| Condition | New |
| Rated Power | 7-9kw, 3-5kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 1500 x 2500 x 300 mm |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1500 x 2500mm |
| Warrenty | 2years |
| Moving speed | 45 m/min |
| Speed | 15 m/min |
| Traveling Size X Axis | 1300 |
| Traveling SizeY Axis | 2500 |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

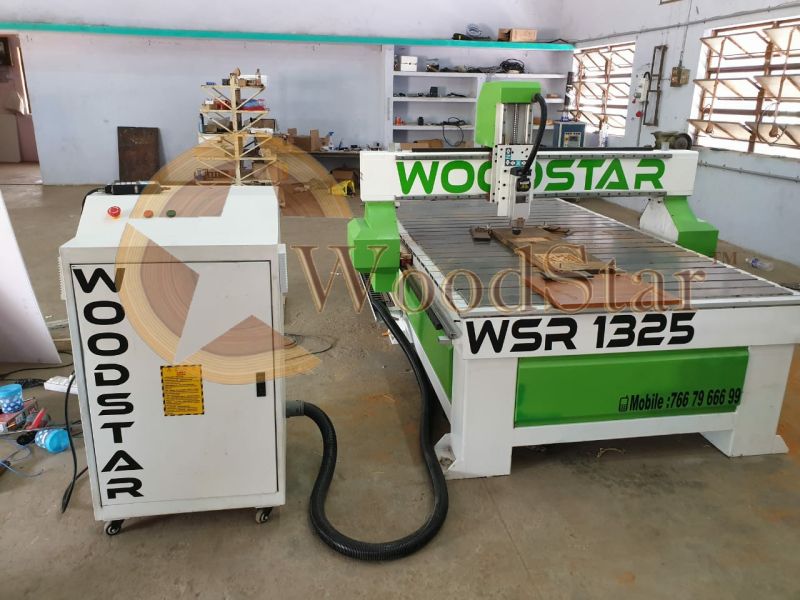

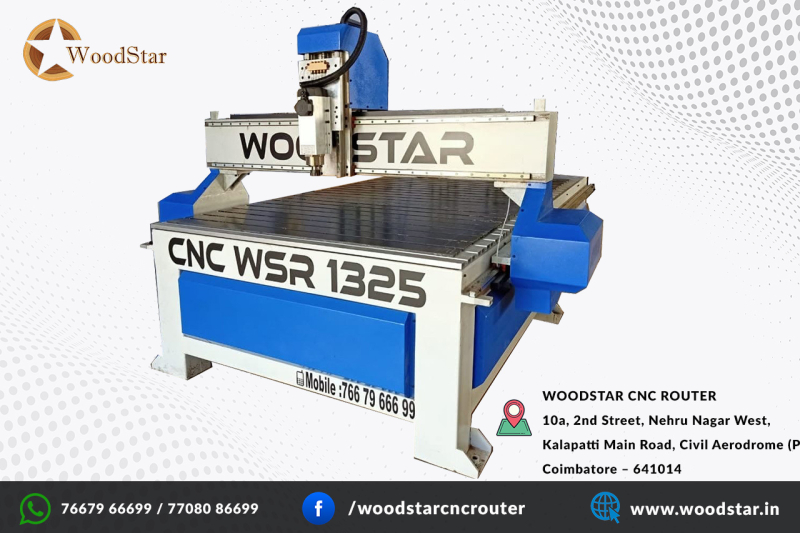

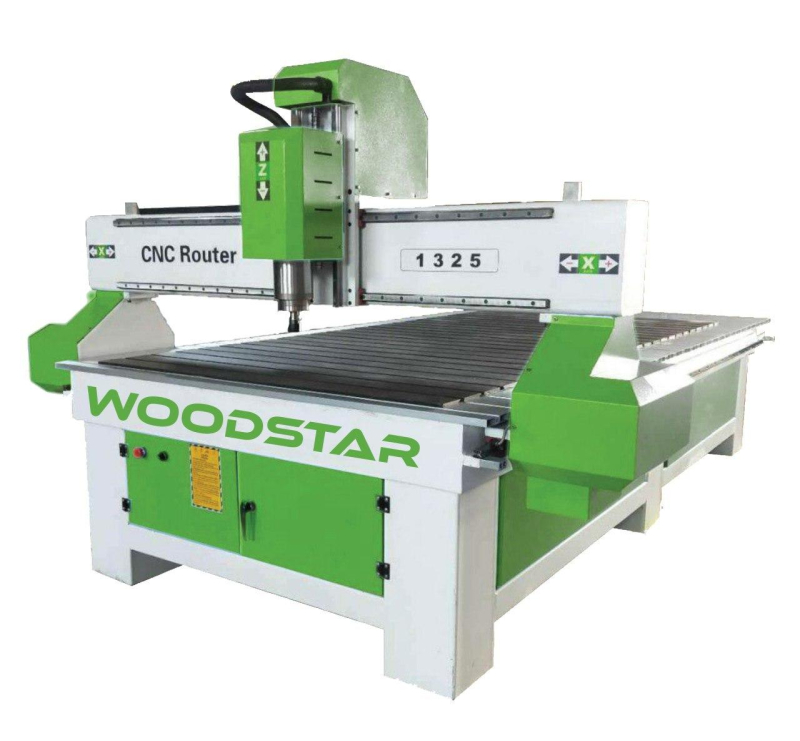

CNC ROUTER WSR-1325 SERVO SINGLE
Working area: 1500 X 2500 X 300 mm
Heavy weld tube structure
HQD Air Cooled Spindle 24000 RPM
INVT TAIWAN VFD
WEIHONG NK105 G2 CNC control system
LEADSHINE 750W AC SERVO Motor and drive with brake system
Rapid speed 25,000 MM / MIN
Working speed 15,000 MM / MIN
TAIWAN 20 mm high load linear rail and bearing
TAIWAN TBI 25mm z ball screw
GERMAN LAPP cables
1.25 M helical harden rack and pinion.
SHIMPO PLANETARY GEARBOX SYSTEM REDUCER
1.5 mm standard T-slot aluminium with hard PVC
Support program: G codes and M codes
Software: Artcam and v carve aspire
Lubrication: Manual
Voltage 220V, Single phase 50hz
Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer
12,000+ designs (800 GB)
Gross weight 1200 kgs
Total power 9.0 Hp
Overall dimension: 3200 x 2300 x 2300 mm
| Business Type | Manufacturer, Exporter |
| Brand Name | Woodstar |
| Color | Green |
| Condition | New |
| Rated Power | 3-5kw,5-7kw |
| Automatic Grade | Automatic,Fully Automatic,Semi Automatic |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Product Code | PERAMBALUR CNC WOOD CARVING ROUTER |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

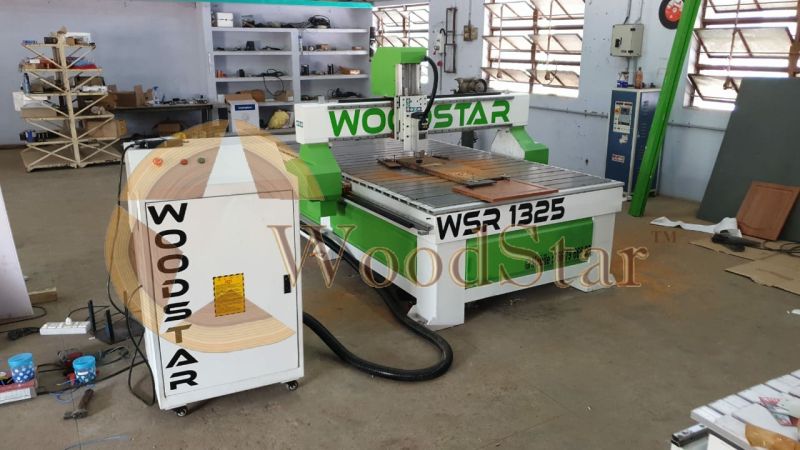

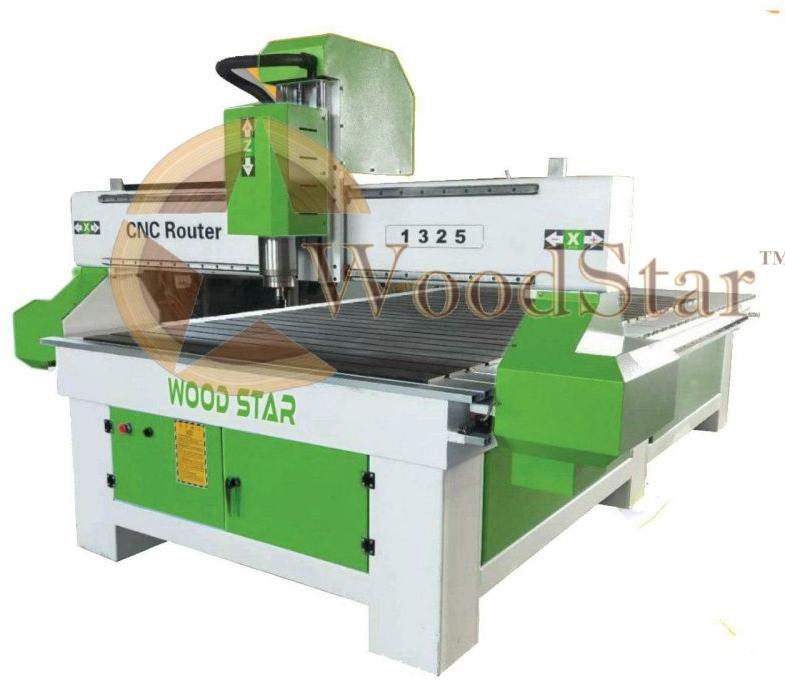

cnc router wsr-1325 stepperâ single
working area: 1500 x 2500 x 300 mm
heavy weld tube structure
hqd air cooled spindle 24000 rpm
invt taiwan vfd
richauto a11 cnc control system
yako stepper motor and drive with brake system
rapid speed 25,000 mm / min
working speed 15,000 mm / min
taiwan 20 mm high load linear rail and bearing
taiwan tbi 25mm z ball screw
german lapp cables
1.25 m helical harden rack and pinion.
timing belt gearbox
1.5 mm standard t-slot aluminium with hard pvc
support program: g codes and m codes
software: artcam and v carve aspire
lubrication: manual
voltage 220v, single phase 50hz
standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
12,000+ designs (800 gb)
gross weight 1200 kgs
total power 9.0 hp
overall dimension: 3200 x 2300 x 2300 mm
#woodstar cnc router 1325 servo wood carving machine in perambalur
| Business Type | Manufacturer, Exporter |
| Brand Name | woodstar |
| Driven Type | Elecric |
| Color | Green |
| Condition | New |
| Rated Power | 3-5kw |
| Automatic Grade | Fully Automatic, Automatic |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1300 x 2500mm |
| Warrenty | 2years |
| Moving speed | 45 m/min |
| Speed | 15 m/min |
| Traveling Size X Axis | 1300 |
| Traveling SizeY Axis | 2500 |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

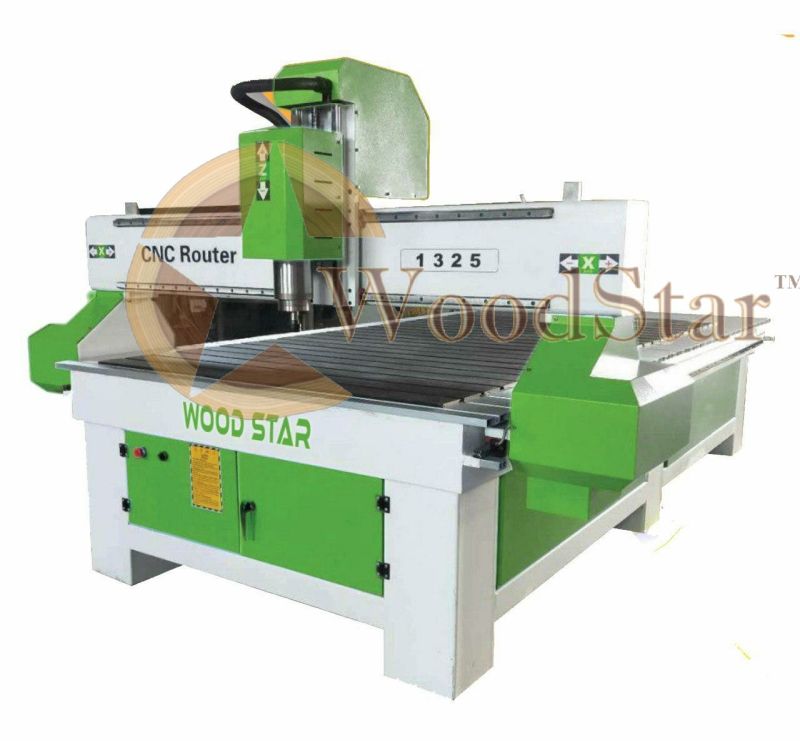

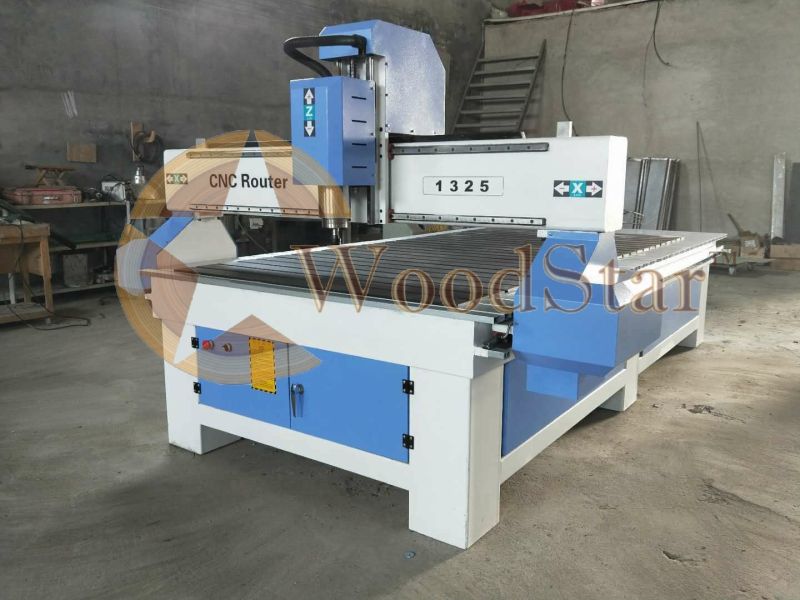

CNC ROUTER WSR-1325 STEPPER SINGLE
Working area: 1500 X 2500 X 300 mm
Heavy weld tube structure
HQD Air Cooled Spindle 24000 RPM
INVT TAIWAN VFD
RICHAUTO A11 CNC control system
YAKO STEPPER Motor and drive with brake system
Rapid speed 25,000 MM / MIN
Working speed 15,000 MM / MIN
TAIWAN 20 mm high load linear rail and bearing
TAIWAN TBI 25mm z ball screw
GERMAN LAPP cables
1.25 M helical harden rack and pinion.
Timing belt gearbox
1.5 mm standard T-slot aluminium with hard PVC
Support program: G codes and M codes
Software: Artcam and v carve aspire
Lubrication: Manual
Voltage 220V, Single phase 50hz
Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer
12,000+ designs (800 GB)
Gross weight 1200 kgs
Total power 9.0 Hp
Overall dimension: 3200 x 2300 x 2300 mm
| Business Type | Manufacturer, Exporter |
| Material | wood |
| Brand Name | Woodstar |
| Driven Type | Electric |
| Color | Grey |
| Condition | New |
| Rated Power | 3-5kw |
| Automatic Grade | Automatic, Semi Automatic |
| Application | Aluminium Cutting, Metal Material Cutting, Plastic Cutting, Wood Cutting |
| Voltage | 220V |
| Type | Cnc Router Machine |
| Weight | 1000-2000kg |
| Warranty | 1years |
| After-Sales Service Provided | yes |
| Country of Origin | India |
| Warrenty | 1 Year, 2 Years |
| Working Area | 1300 × 2500 × 200 mm |
| Phase | Single Phase |
| Frequency | 50hz |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 20 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Details :
- 5 kw Air Cooled Spindle
- Innovance inverter
- Richauto A11 DSP Remote Controller
- YAKO 750W Motor and Drive
- ZD Planetary Gearbox
- T slot Aluminium Table
- TAIWAN HIWIN 20 linear Rail
- 25 Helical Rack and Pinion System
- Standard Tools and accessories
- Stabilizer
- Design – 800 GB (10,000+)
| Business Type | Manufacturer, Exporter |
| Brand Name | WOODSTAR |
| Driven Type | Electric |
| Color | Light Green, Light White |
| Condition | New |
| Power | 3-6kw |
| Automation Grade | Automatic, Fully Automatic, Semi Automatic |
| Application | Wood Cutting |
| Voltage | 110V, 220V |
| Type | Cnc Wood Router |
| Weight | 1000-1200kg |
| Warranty | 1year, 2years |
| After-Sales Service Provided | YES |
| Country of Origin | India |
| Product Code | WOODSTAR CNC ROUTER WOOD CARVING MACHIN |
| Port | CHENNAI |
| Delivery Time | 15 DAYS |
| Packaging Details | 3100 x 2100 x 2100 mm wooden box |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

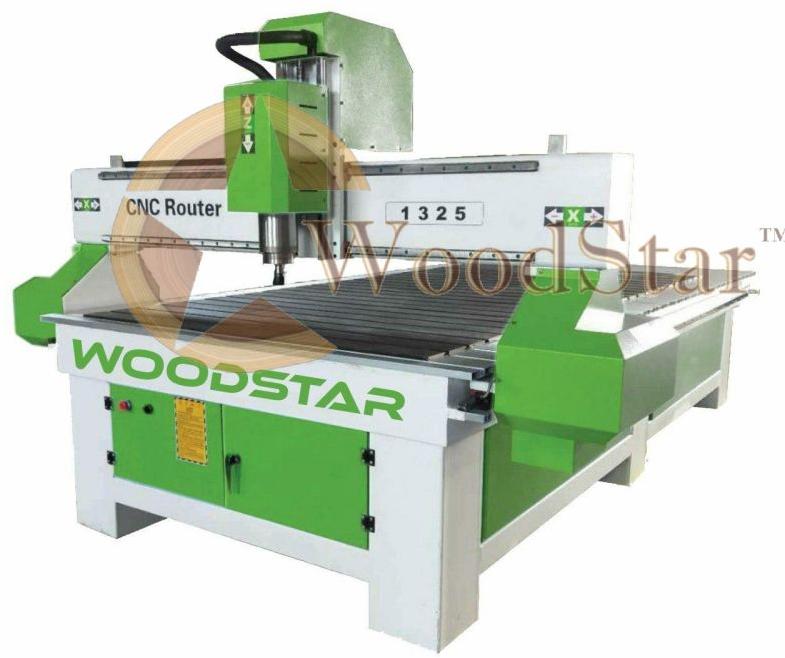

cnc router wsr-1525 – stepper– single
øworking area: 1500×2500×300 mm
øheavy weld tube structure
hqd air cooled spindle 24000 rpm
øinvt taiwan vfd
øweihong nk105g2 / a11 cnc control system
øyako stepper motor and drive with brake system
ørapid speed 25,000 mm / min
øworking speed 15,000 mm/ min
øtaiwan 20 mm high load linear rail and bearing
øtaiwan tbi 25mm z ball screw
øgerman lapp cables
ø 1.25 m helical harden rack and pinion.
øtiming belt gearbox
ø1.5 mm standard t-slot aluminium with hard pvc
øsupport program: g codes and m codes
øsoftware: artcam and v carve aspire
ølubrication: manual
øvoltage 220v, single phase 50hz
østandard tools and accessories include allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
ø12,000 + designs (800 gb)
øgross weight 1200 kgs
øtotal power 9.0 hp
øoverall dimension: 3200 x 2300 x 2300 mm
