CNC Door making Machine

Leading Manufacturers and Exporters of Coimbatore Cnc Wood Carving Router Machine, Sivagangai Cnc Wood Carving Router Machine and Tuticorin Cnc Wood Carving Router Machine from Coimbatore.

MOQ : 1 1

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Green
Condition New
Rated Power 3-5kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1300 X 2500 X 250 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1300 X 2500mm
Warrenty 2years
Moving speed 45 M/min
Speed 15 M/min
Traveling Size X Axis 1300
Traveling SizeY Axis 2500
Product Code COIMBATORE CNC WOOD CARVING ROUTER
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

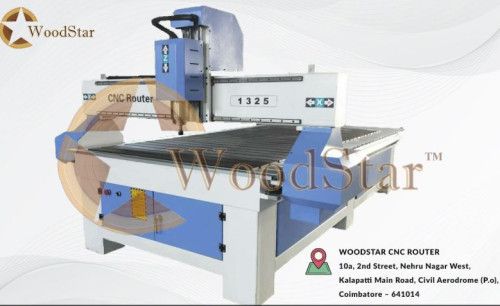

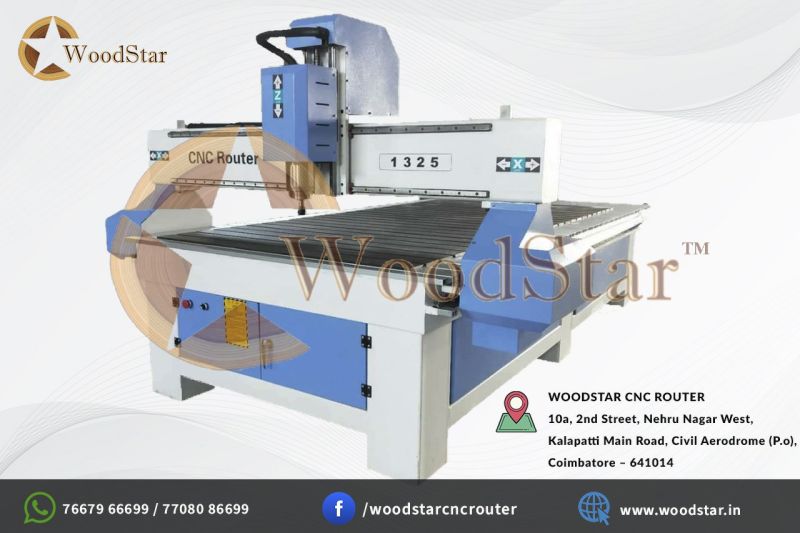

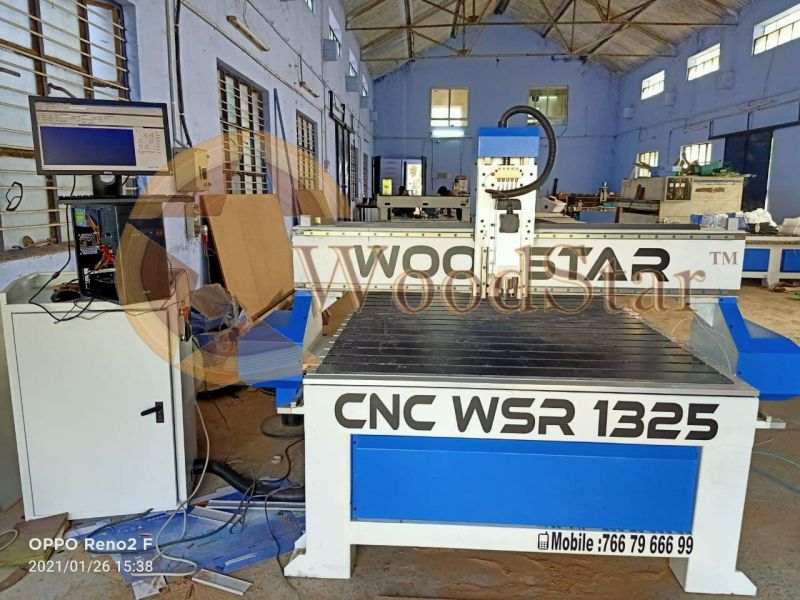

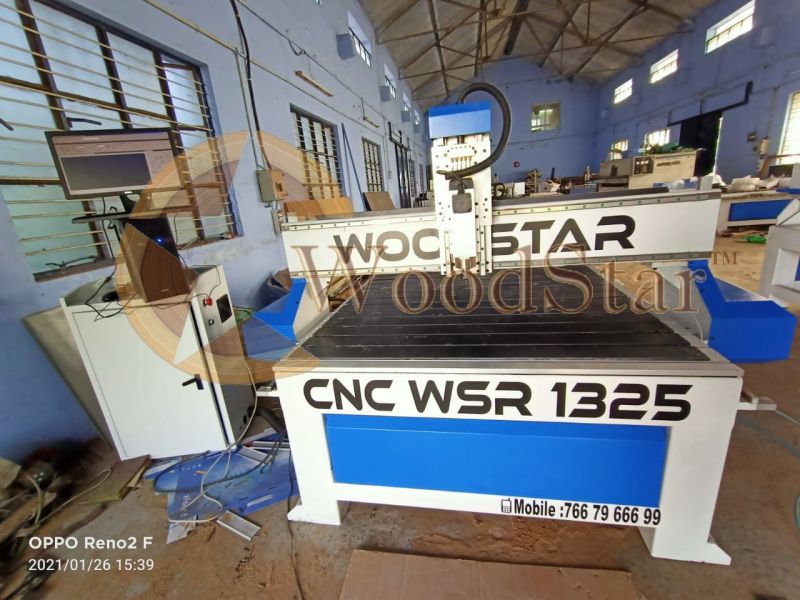

CNC ROUTER WSR-1325  STEPPERâ SINGLE


Working area: 1300 X 2500 X 300 mm


Heavy weld tube structure


HQD Air Cooled Spindle 24000 RPM


INVT TAIWAN VFD


RICHAUTO A11 CNC control system


YAKO STEPPER Motor and drive with brake system


Rapid speed 25,000 MM / MIN


Working speed 15,000 MM / MIN


TAIWAN 20 mm high load linear rail and bearing


TAIWAN TBI 25mm z ball screw


GERMAN LAPP cables


1.25 M helical harden rack and pinion.


Timing belt gearbox


1.5 mm standard T-slot aluminium with hard PVC


Support program: G codes and M codes


Software: Artcam and v carve aspire


Lubrication: Manual


Voltage 220V, Single phase 50hz


Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer


12,000+ designs (800 GB)


Gross weight 1200 kgs


Total power 9.0 Hp

Read More...


Yes! I am interested


Price : 3.80 Lac - 4.60 Lac / piece
Get Best Price

MOQ : 1 P

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color BLUE
Condition New
Rated Power 5-7kw, 3-5kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1300 X 2500 X 250 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1300 X 2500mm
Warrenty 2years
Moving speed 45 M/min
Speed 15 M/min
Traveling Size X Axis 1300
Traveling SizeY Axis 2500
Product Code SIVAGANGAI CNC WOOD CARVING ROUTER
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

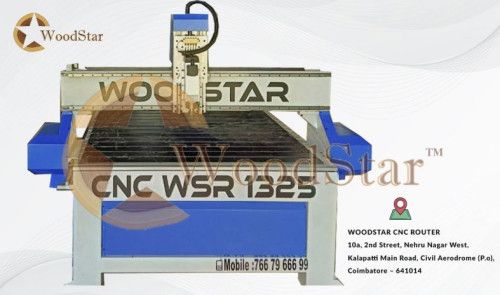

cnc router wsr-1325  stepper single

working area: 1500 x 2500 x 300 mm

heavy weld tube structure

hqd air cooled spindle 24000 rpm

invt taiwan vfd

richauto a11 cnc control system

yako stepper motor and drive with brake system

rapid speed 25,000 mm / min

working speed 15,000 mm / min

taiwan 20 mm high load linear rail and bearing

taiwan tbi 25mm z ball screw

german lapp cables

1.25 m helical harden rack and pinion.

timing belt gearbox

1.5 mm standard t-slot aluminium with hard pvc

support program: g codes and m codes

software: artcam and v carve aspire

lubrication: manual

voltage 220v, single phase 50hz

standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

12,000+ designs (800 gb)

gross weight 1200 kgs

total power 9.0 hp

overall dimension: 3200 x 2300 x 2300 mm



#woodstar cnc router 1325 servo wood carving machine in sivagangai

Read More...


Yes! I am interested


Price : 6.50 Lac - 7.50 Lac / piece
Get Best Price

MOQ : 1 piece

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Black
Condition New
Rated Power 7-9kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1500 X 2500 X 300 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1500 X 2500mm
Warrenty 2years
Moving speed 60 M/min
Speed 30 M/min
Traveling Size X Axis 1500
Traveling SizeY Axis 2500
Product Code TUTICORIN CNC WOOD CARVING ROUTER
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

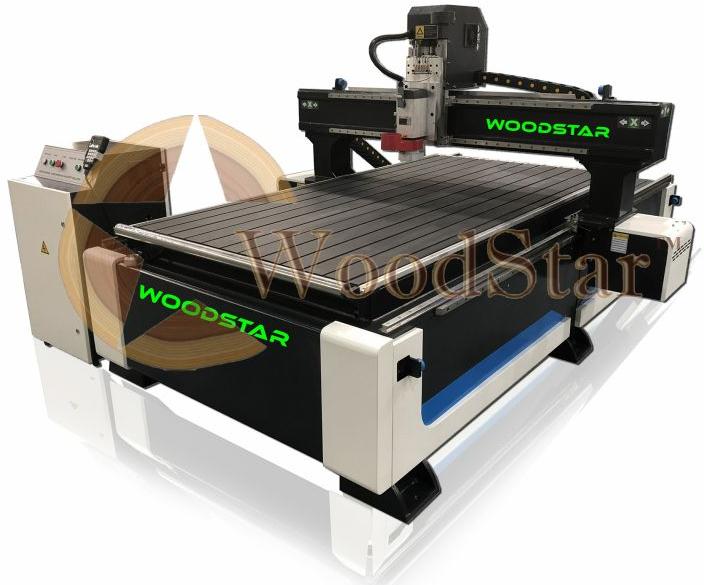

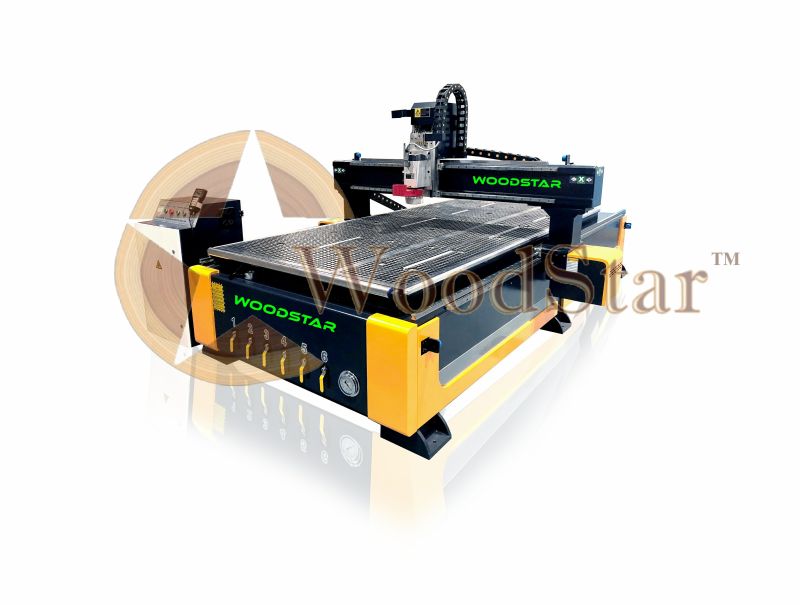

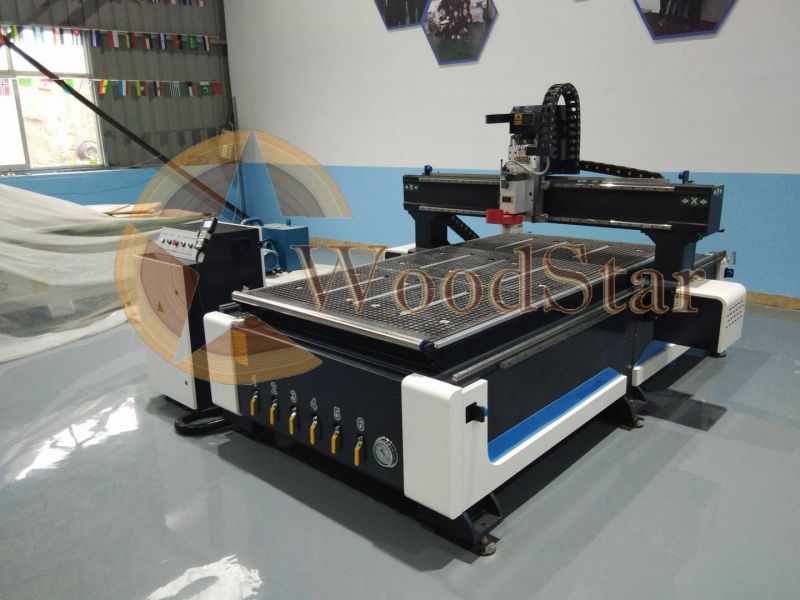

cnc router wsr-1325  pure servo single

working area: 1500 x 2500 x 300 mm

heavy weld tube structure

hqd air cooled spindle 24000 rpm

invt taiwan vfd

weihong nk105 g2 cnc control system

leadshine 750w motor and drive with brake system

rapid speed 25,000 mm / min

working speed 15,000 mm / min

taiwan 20 mm high load linear rail and bearing

taiwan tbi 25mm z ball screw

german lapp cables

1.25 m helical harden rack and pinion.

timing belt gearbox

1.5 mm standard t-slot aluminium with hard pvc

support program: g codes and m codes

software: artcam and v carve aspire

lubrication: manual

voltage 220v, single phase 50hz

standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

12,000+ designs (800 gb)

gross weight 1200 kgs

total power 9.0 hp

overall dimension: 3200 x 2300 x 2300 mm





#woodstar cnc router 1325 servo wood carving machine in tuticorin
