3.80 Lac - 4.60 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter
Brand Name WOODSTAR
Driven Type Electric
Color White
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Condition
NEW
Rated Power
3-5kw
Automatic Grade
Semi Automatic, Fully Automatic, Automatic
Voltage
230V
Packaging Type
PLASTIC WRp
Weight
1200`
After-Sales Service Provided
Yes
Country of Origin
India
Warrenty
2years, 1year
Product Code
WOODSTAR CNC ROUTER WOOD CARVING MACHIN
Port
chennai
Payment Terms
T/T
Delivery Time
15 days
Packaging Details
3100 x 2100 x 2100 mm
wooden box

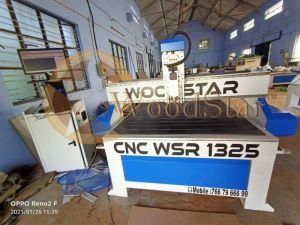

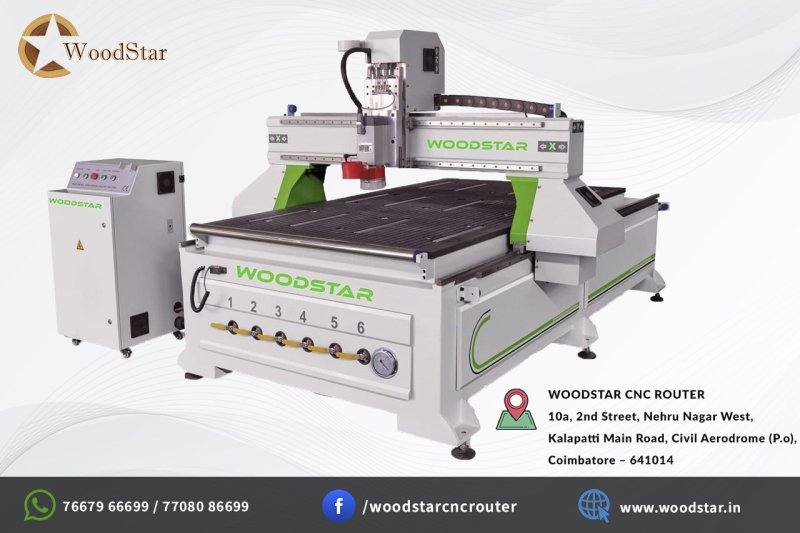

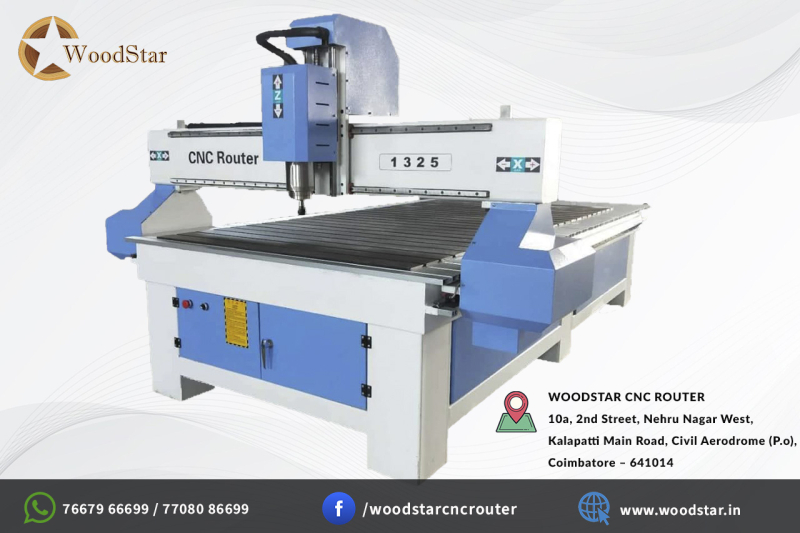

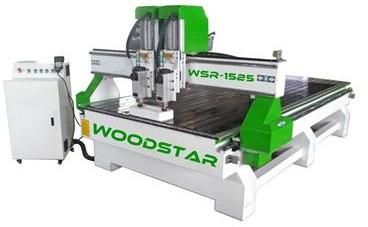

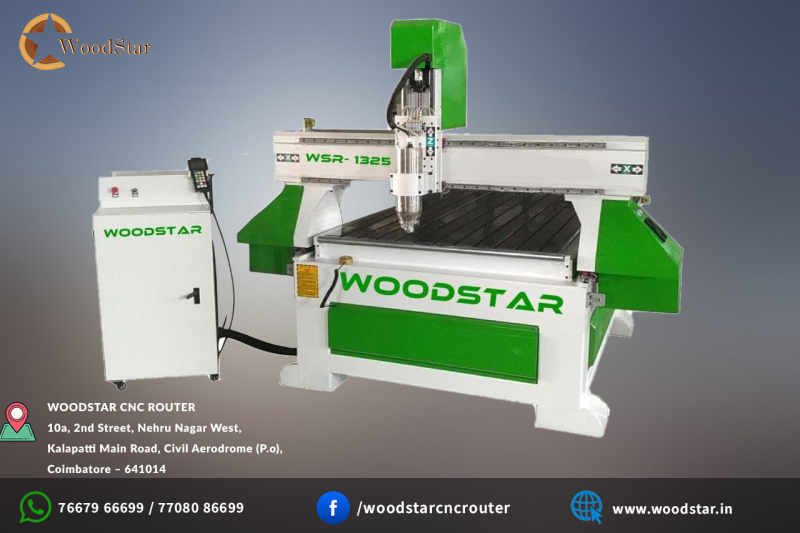

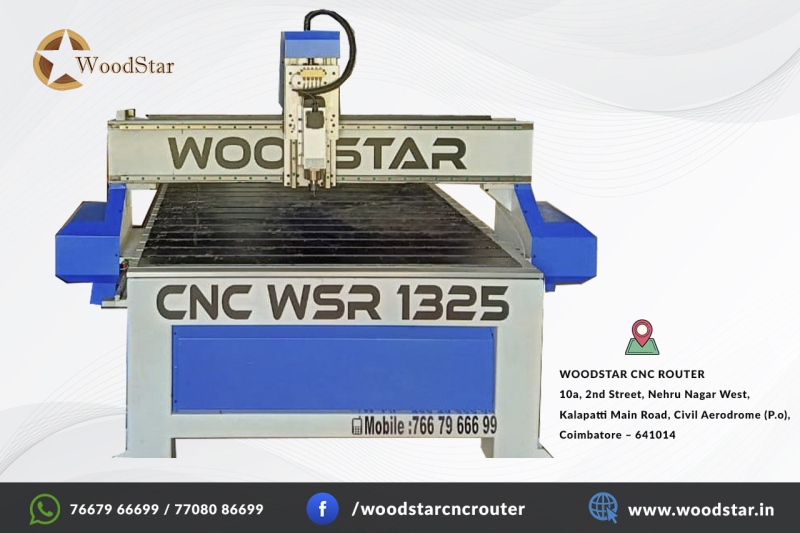

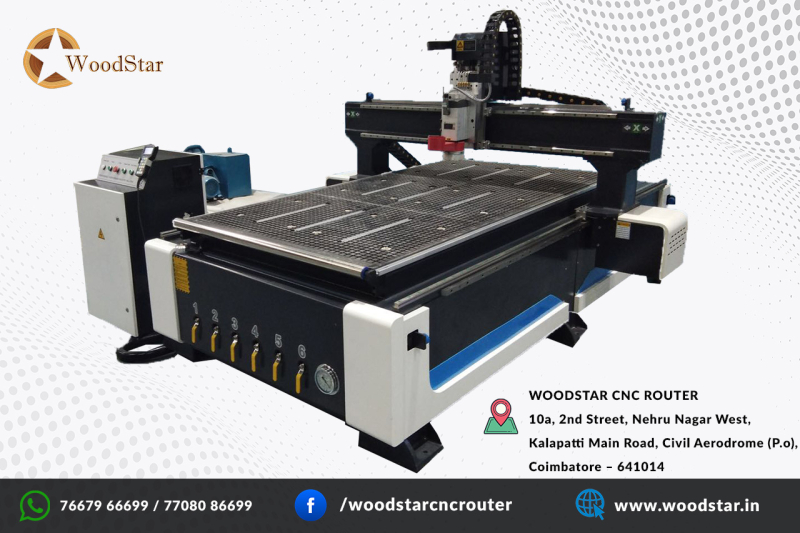

CNC ROUTER WSR-1525 – STEPPER– SINGLE



ØWorking area: 1500×2500×300 mm



ØHeavy weld tube structure



HQD Air Cooled Spindle 24000 RPM



ØINVT TAIWAN VFD



ØWeihong NK105G2 / A11 CNC control system



ØYAKO STEPPER Motor and drive with brake system



ØRapid speed 25,000 mm / min



ØWorking speed 15,000 mm/ min



ØTAIWAN 20 mm high load linear rail and bearing



ØTAIWAN TBI 25mm z ball screw



ØGERMAN LAPP cables



Ø 1.25 M helical harden rack and pinion.



ØTiming belt gearbox



Ø1.5 mm standard T-slot aluminium with hard PVC



ØSupport program: G codes and M codes



ØSoftware: Artcam and v carve aspire



ØLubrication: Manual



ØVoltage 220V, Single phase 50hz



ØStandard tools and accessories include Allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer



Ø12,000 + designs (800 GB)



ØGross weight 1200 kgs



ØTotal power 9.0 Hp



ØOverall dimension: 3200 x 2300 x 2300 mm
