CNC Wood Engraving Machine

Leading Manufacturers and Exporters of Chennai Wood Cnc Router Carving Machine, Kallakurichi Cnc Wood Carving Router Machine, Namakkal Cnc Wood Carving Router Machine, Tiruppur Cnc Wood Carving Router Machine and CNC Engraving Machine from Coimbatore.

MOQ : 1 1

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Green
Condition New
Rated Power 9-12kw, 7-9kw, 3-5kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1500 X 2500 X 300 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1500 X 2500mm
Warrenty 2years
Moving speed 60 M/min
Speed 30 M/min
Traveling Size X Axis 1500
Traveling SizeY Axis 2500
Product Code CHENNAI CNC WOOD ROUTER CARVING MACHINE
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

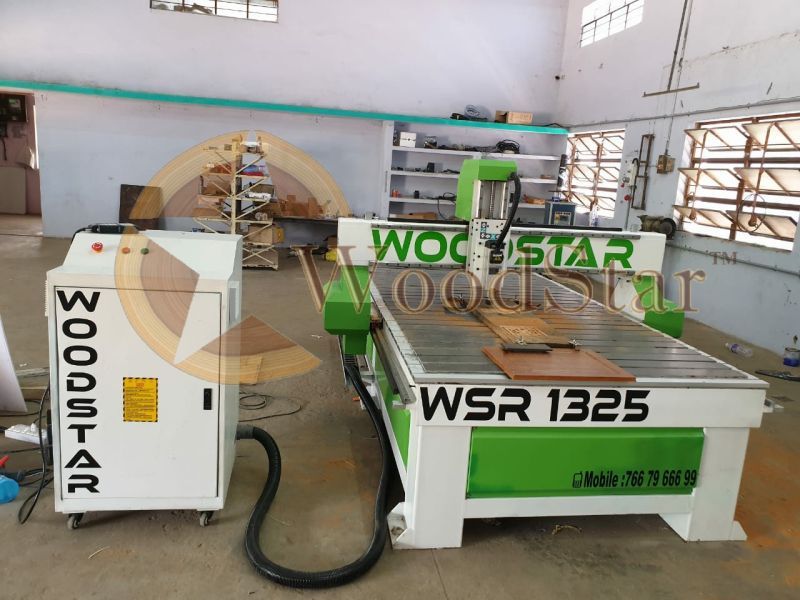

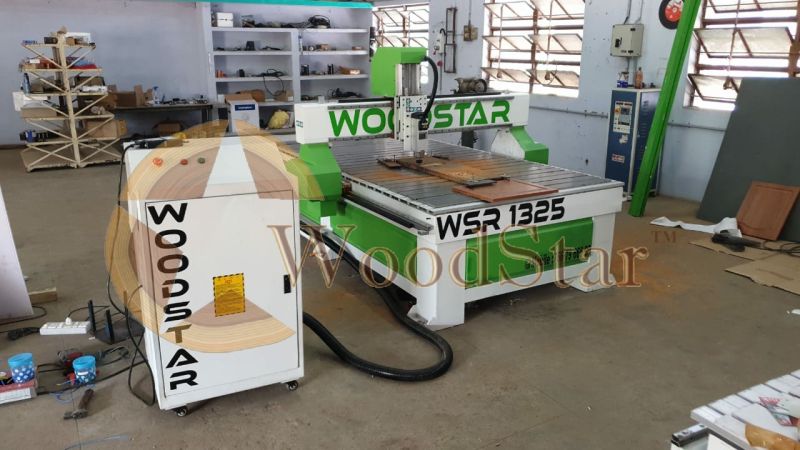

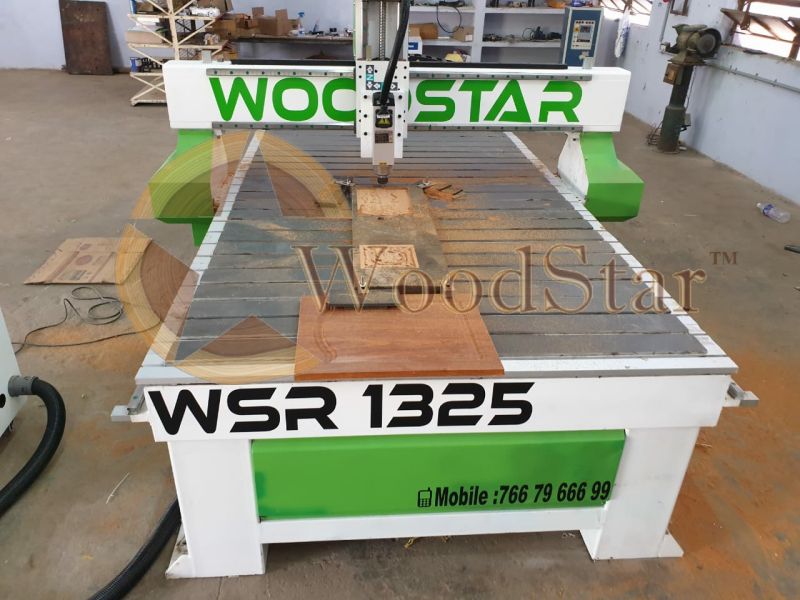

cnc router wsr-1325  servo single


working area: 1500 x 2500 x 300 mm


heavy weld tube structure


hqd air cooled spindle 24000 rpm


invt taiwan vfd


weihong nk105 g2 cnc control system


leadshine servo motor and drive with brake system


rapid speed 25,000 mm / min


working speed 15,000 mm / min


taiwan 20 mm high load linear rail and bearing


taiwan tbi 25mm z ball screw


german lapp cables


1.25 m helical harden rack and pinion.


shimpo planetary  gearbox system reducer


1.5 mm standard t-slot aluminium with hard pvc


support program: g codes and m codes


software: artcam and v carve aspire


lubrication: manual


voltage 220v, single phase 50hz


standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer


12,000+ designs (800 gb)


gross weight 1200 kgs


total power 9.0 hp


overall dimension: 3200 x 2300 x 2300 mm




Read More...


Yes! I am interested


MOQ : 1 piece

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Grey
Condition New
Rated Power 7-9kw, 5-7kw, 3-5kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1300 X 2500 X 250 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1500 X 2500mm
Warrenty 2years
Moving speed 45 M/min
Speed 15 M/min
Traveling Size X Axis 1300
Traveling SizeY Axis 2500
Product Code KALLAKURICHI CNC WOOD CARVING ROUTER
Port chennai
Payment Terms T/T
Delivery Time 15 days
Packaging Details We are glad to introduce ourselves as Kovai Woodstar Automation and Technology Pvt Ltd, from Coimbatore, Tamil Nadu, INDIA.

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

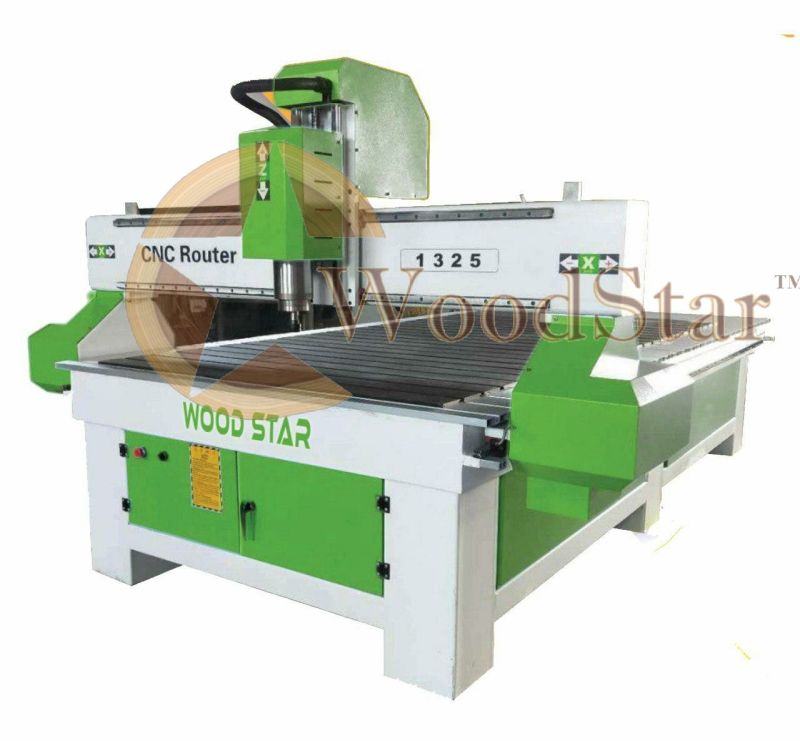

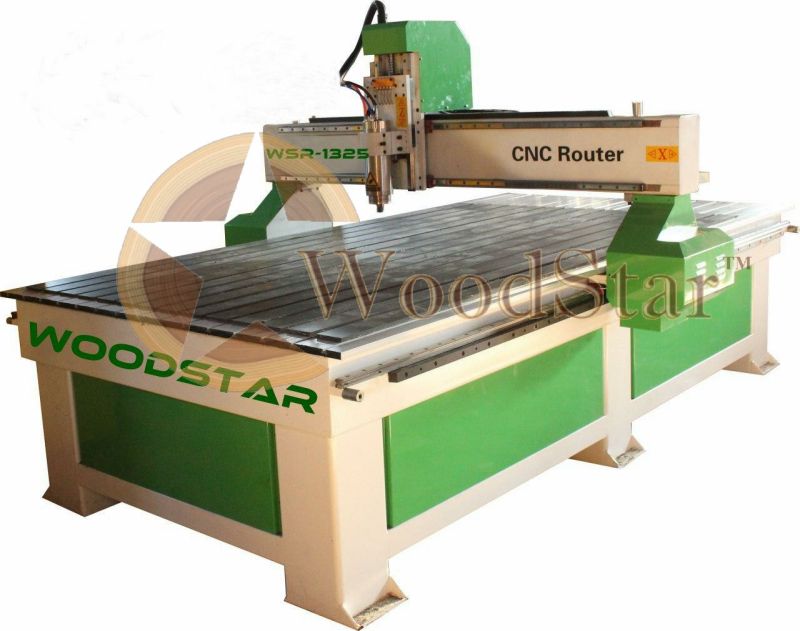

cnc router wsr-1325  stepper single

working area: 1500 x 2500 x 300 mm

heavy weld tube structure

hqd air cooled spindle 24000 rpm

invt taiwan vfd

richauto a11 cnc control system

yako stepper motor and drive with brake system

rapid speed 25,000 mm / min

working speed 15,000 mm / min

taiwan 20 mm high load linear rail and bearing

taiwan tbi 25mm z ball screw

german lapp cables

1.25 m helical harden rack and pinion.

timing belt gearbox

1.5 mm standard t-slot aluminium with hard pvc

support program: g codes and m codes

software: artcam and v carve aspire

lubrication: manual

voltage 220v, single phase 50hz

standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

12,000+ designs (800 gb)

gross weight 1200 kgs

total power 9.0 hp

overall dimension: 3200 x 2300 x 2300 mm



#woodstar cnc router 1325 servo wood carving machine in kallakurichi

Read More...


Yes! I am interested


Price : 3.80 Lac - 4.60 Lac / piece
Get Best Price

MOQ : 1 piece

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Green
Condition New
Rated Power 5-7kw, 3-5kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1300 X 2500 X 250 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1300 X 2500mm
Warrenty 2years
Moving speed 45 M/min
Speed 15 M/min
Traveling Size X Axis 1300
Traveling SizeY Axis 2500
Product Code KARUR CNC WOOD CARVING ROUTER MACHINE
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

cnc router wsr-1325  stepper single

working area: 1500 x 2500 x 300 mm

heavy weld tube structure

hqd air cooled spindle 24000 rpm

invt taiwan vfd

richauto a11 cnc control system

yako stepper motor and drive with brake system

rapid speed 25,000 mm / min

working speed 15,000 mm / min

taiwan 20 mm high load linear rail and bearing

taiwan tbi 25mm z ball screw

german lapp cables

1.25 m helical harden rack and pinion.

timing belt gearbox

1.5 mm standard t-slot aluminium with hard pvc

support program: g codes and m codes

software: artcam and v carve aspire

lubrication: manual

voltage 220v, single phase 50hz

standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

12,000+ designs (800 gb)

gross weight 1200 kgs

total power 9.0 hp

overall dimension: 3200 x 2300 x 2300 mm



#woodstar cnc router 1325 servo wood carving machine in karur

Read More...


Yes! I am interested


MOQ : 1 1

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color Red
Condition New
Rated Power 5-7kw
Automatic Grade Semi Automatic, Fully Automatic, Automatic
Size 1500 X 2500 X 250 Mm
Voltage 220
Type Cnc Wood Carving Machine
Weight 1000-2000kg
Frequency 50
After-Sales Service Provided 1
Country of Origin India
Table Size 1500 X 2500mm
Warrenty 2years
Moving speed 45 M/min
Speed 15 M/min
Traveling Size X Axis 1500
Traveling SizeY Axis 2500
Product Code TIRUPPUR CNC WOOD CARVING ROUTER MACHINE
Port chennai
Payment Terms T/T
Delivery Time 15 days

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

cnc router wsr-1525  stepper double head


working area: 1500 x 2500 x 300 mm


heavy weld tube structure


hqd air cooled spindle 24000 rpm


invt taiwan vfd


richauto a11 cnc control system


yako stepper motor and drive with brake system


rapid speed 25,000 mm / min


working speed 15,000 mm / min


taiwan 20 mm high load linear rail and bearing


taiwan tbi 25mm z ball screw


german lapp cables


1.25 m helical harden rack and pinion.


timing belt gearbox


1.5 mm standard t-slot aluminium with hard pvc


support program: g codes and m codes


software: artcam and v carve aspire


lubrication: manual


voltage 220v, single phase 50hz


standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer


12,000+ designs (800 gb)


gross weight 1200 kgs


total power 9.0 hp





overall dimension: 3200 x 2300 x 2300 mm







Read More...


Yes! I am interested


Price : 3.80 Lac - 4.60 Lac / Set
Get Best Price

MOQ : 1 Set

Business Type Manufacturer, Exporter
Brand Name WOODSTAR
Driven Type Elecric
Rated Power 3-5kw
Voltage 110V, 220V
Type Wood Engraving Machine
Country of Origin India
Product Code WOODSTAR CNC ROUTER WOOD CARVING MACHIN
Port CHENNAI
Payment Terms T/T
Delivery Time 15 DAYS
Packaging Details 3100 x 2100 x 2100 mm
wooden box

Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries



CNC ROUTER WSR-1525 – STEPPER– SINGLE



ØWorking area: 1500×2500×300 mm



ØHeavy weld tube structure



HQD Air Cooled Spindle 24000 RPM



ØINVT TAIWAN VFD



ØWeihong NK105G2 / A11 CNC control system



ØYAKO STEPPER Motor and drive with brake system



ØRapid speed 25,000 mm / min



ØWorking speed 15,000 mm/ min



ØTAIWAN 20 mm high load linear rail and bearing



ØTAIWAN TBI 25mm z ball screw



ØGERMAN LAPP cables



Ø 1.25 M helical harden rack and pinion.



ØTiming belt gearbox



Ø1.5 mm standard T-slot aluminium with hard PVC



ØSupport program: G codes and M codes



ØSoftware: Artcam and v carve aspire



ØLubrication: Manual



ØVoltage 220V, Single phase 50hz



ØStandard tools and accessories include Allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer



Ø12,000 + designs (800 GB)



ØGross weight 1200 kgs



ØTotal power 9.0 Hp



ØOverall dimension: 3200 x 2300 x 2300 mm
