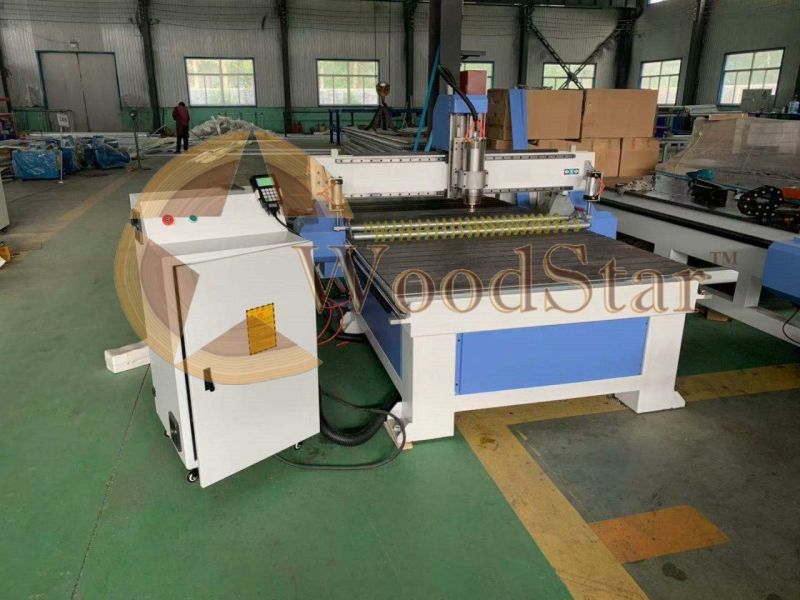

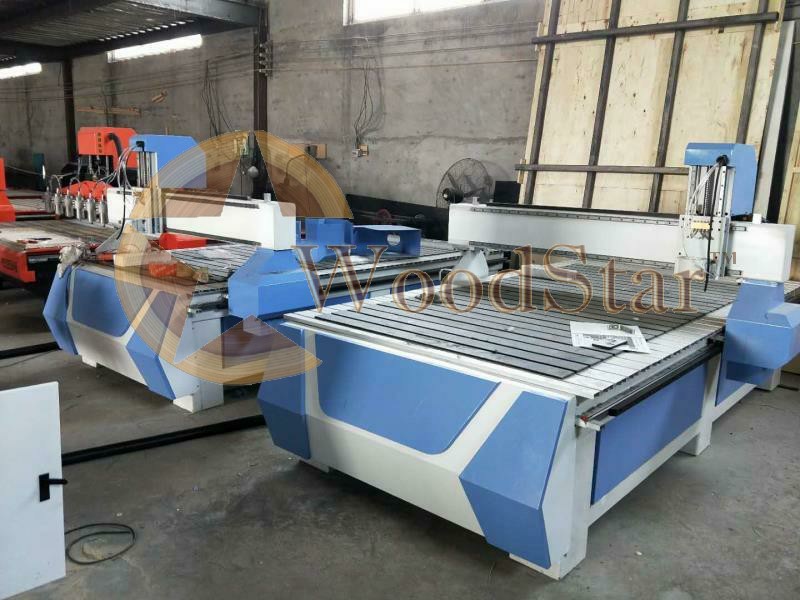

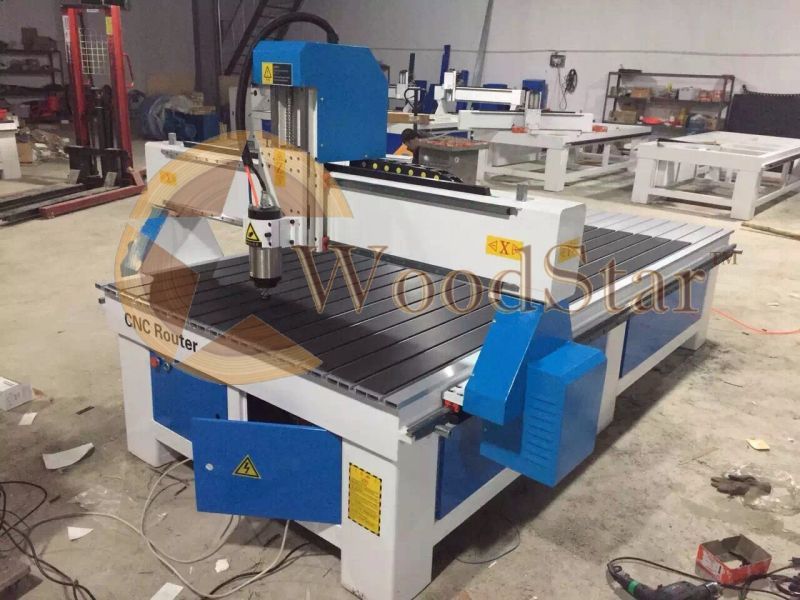

Mayiladuthurai Cnc Wood Carving Router Machine

3.60 Lac - 4.60 Lac / piece

1 P (MOQ)

Business Type Manufacturer, Exporter
Brand Name woodstar
Driven Type Elecric
Color BLUE
Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

Product Details

Condition
New
Rated Power
5-7kw, 3-5kw
Automatic Grade
Semi Automatic, Fully Automatic, Automatic
Size
1300 X 2500 X 250 Mm
Voltage
220
Type
Cnc Wood Carving Machine
Weight
1000-2000kg
Frequency
50
After-Sales Service Provided
1
Country of Origin
India
Table Size
1300 X 2500mm
Warrenty
2years
Moving speed
45 M/min
Speed
15 M/min
Traveling Size X Axis
1300
Traveling SizeY Axis
2500
Product Code
MAYILADUTHURAI WOOD CNC CARVING ROUTER
Port
chennai
Payment Terms
T/T
Delivery Time
15 days

cnc router wsr-1325  stepper single

working area: 1500 x 2500 x 300 mm

heavy weld tube structure

hqd air cooled spindle 24000 rpm

invt taiwan vfd

richauto a11 cnc control system

yako stepper motor and drive with brake system

rapid speed 25,000 mm / min

working speed 15,000 mm / min

taiwan 20 mm high load linear rail and bearing

taiwan tbi 25mm z ball screw

german lapp cables

1.25 m helical harden rack and pinion.

timing belt gearbox

1.5 mm standard t-slot aluminium with hard pvc

support program: g codes and m codes

software: artcam and v carve aspire

lubrication: manual

voltage 220v, single phase 50hz

standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

12,000+ designs (800 gb)

gross weight 1200 kgs

total power 9.0 hp

overall dimension: 3200 x 2300 x 2300 mm

#woodstar cnc router 1325 servo wood carving machine in mayiladuthurai
