cnc stone engraving machine

cnc stone engraving machine
Price : 3.80 Lac - 4.20 Lac / piece
Get Best Price

MOQ : 1 piece

Business Type Manufacturer, Exporter
Brand Name WOODSTAR
Driven Type STEPPER
Shape RECTABGLE
Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

Product Details

Rated Power
5HP
Speciality
ECONOMICAL
Usage/Application
WOOD AND STONE
Voltage
220V
Dimension (LxWxH)
3200X2300X2100 MM
Boring Bar Size
ER20
Bed Size
1300X2500 MM
Type
FULLY AUTOMATIC
Machine Weight
1800 KGS
Rated Current
9.0AMPS
Phase
SINGLE
Country of Origin
India
Engraving Speed
25000 MM/MIN
Spindle Speed
24000RPM
Layout
DXF
LED Indicator
AVALIABLE
Machine Structure
WELD TUBE
Load Speed
12000 MM/MIN
Spindle Motor
HQD
Maximum Turning Length
NIL
X-Axis Stroke
1300
X-Axis Rapid
25000 MM /MIN
Z-Axis Stroke
280 MM
Z-Axis Rapid
12000 MM/MIN
No. of Spindles
1
Controlling Mode
DSP A11
Product Code
Ms CNC Stone Engraving Machine WSR1325
Port
CHENNAI
Payment Terms
T/T
Delivery Time
20 DAYS
Packaging Details
3200X 2300X2100 MM

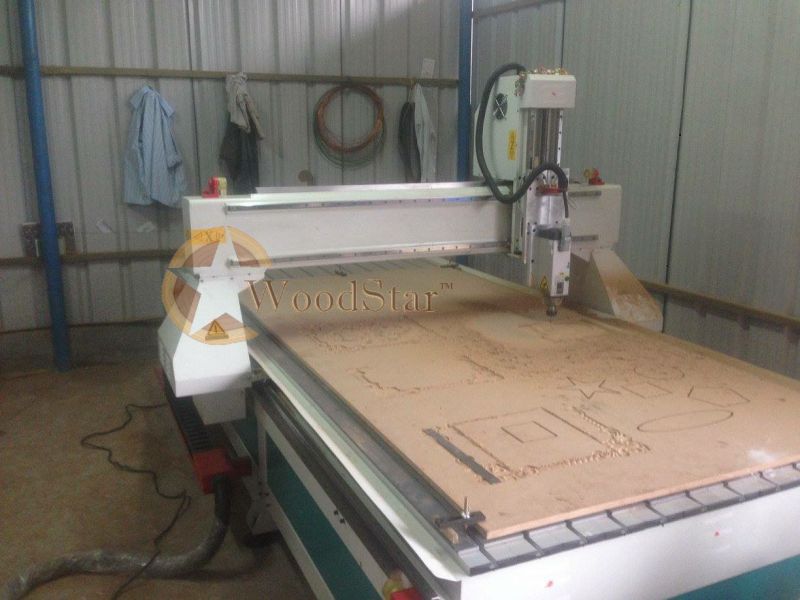

woodstar cnc router wsr-1325 stepper single carving machine





 working area: 1500 x 2500 x 300 mm





 heavy weld tube structure





 hqd air cooled spindle 24000 rpm





 invt taiwan vfd





 richauto a11 cnc control system





 yako stepper motor and drive with brake system





 rapid speed 25,000 mm / min





 working speed 15,000 mm / min





 taiwan 20 mm high load linear rail and bearing





 taiwan tbi 25mm z ball screw





 german lapp cables





 1.25 m helical harden rack and pinion.





 timing belt gearbox





 1.5 mm standard t-slot aluminium with hard pvc





 support program: g codes and m codes





 software: artcam and v carve aspire





 lubrication: manual





 voltage 220v, single phase 50hz





 standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer





 12,000+ designs (800 gb)





 gross weight 1200 kgs





 total power 9.0 hp





 overall dimension: 3200 x 2300 x 2300 mm
