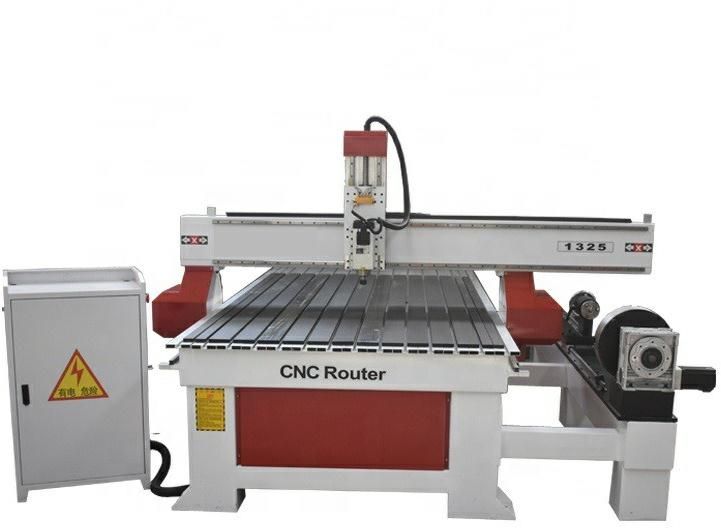

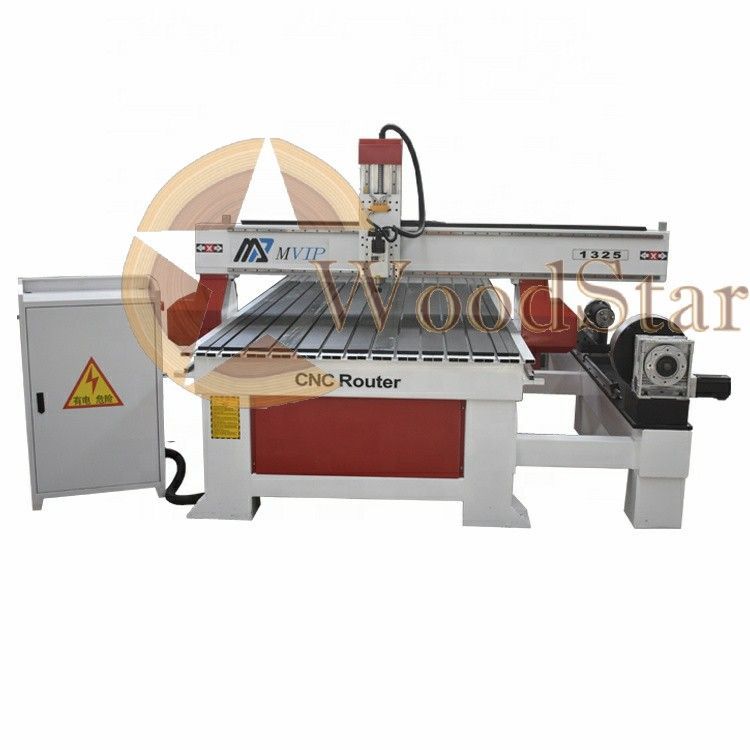

Thanjavur Cnc Wood Carving Machine

thanjavur woodstar cnc  router encraving carving machine

cnc router wsr-1525 – stepper– single

øworking area: 1500×2500×300 mm

øheavy weld tube structure

hqd air cooled spindle 24000 rpm

øinvt taiwan vfd

øweihong nk105g2 / a11 cnc control system

øyako stepper motor and drive with brake system

ørapid speed 25,000 mm / min

øworking speed 15,000 mm/ min

øtaiwan 20 mm high load linear rail and bearing

øtaiwan tbi 25mm z ball screw

øgerman lapp cables

ø 1.25 m helical harden rack and pinion.

øtiming belt gearbox

ø1.5 mm standard t-slot aluminium with hard pvc

øsupport program: g codes and m codes

øsoftware: artcam and v carve aspire

ølubrication: manual

øvoltage 220v, single phase 50hz

østandard tools and accessories include allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer

ø12,000 + designs (800 gb)

øgross weight 1200 kgs

øtotal power 9.0 hp

øoverall dimension: 3200 x 2300 x 2300 mm

rotary atttachment: 1500x200 mm
