CNC Die Making Machine
Leading Manufacturers, Exporters, Wholesaler, Distributor, Importer of CNC ROUTER WSR-1530 SERVO ATC, Eco 1325S CNC Router Machine, Nagapattinam Cnc Wood Carving Router Machine, Servo 1325S CNC Router Machine, Tiruvannamalai Cnc Wood Carving Router Machine, TRICHY CNC WOOD CARVING ROUTER MACHINE and Vellore Cnc Wood Carving Router Machine from Coimbatore.
MOQ : 2 Piece
| Business Type | Manufacturer, Exporter |
| Driven Type | Electric |
| Color | Light Green |
| Condition | New |
| Power | 3-6kw |
| Automation Grade | Automatic, Fully Automatic, Manual, Semi Automatic |
| Application | Aluminium Cutting, Metal Material Cutting, Plastic Cutting, Wood Cutting |
| Certification | ISO 9001:2015 |
| Voltage | Voltage 380V,Three Phase 50hz |

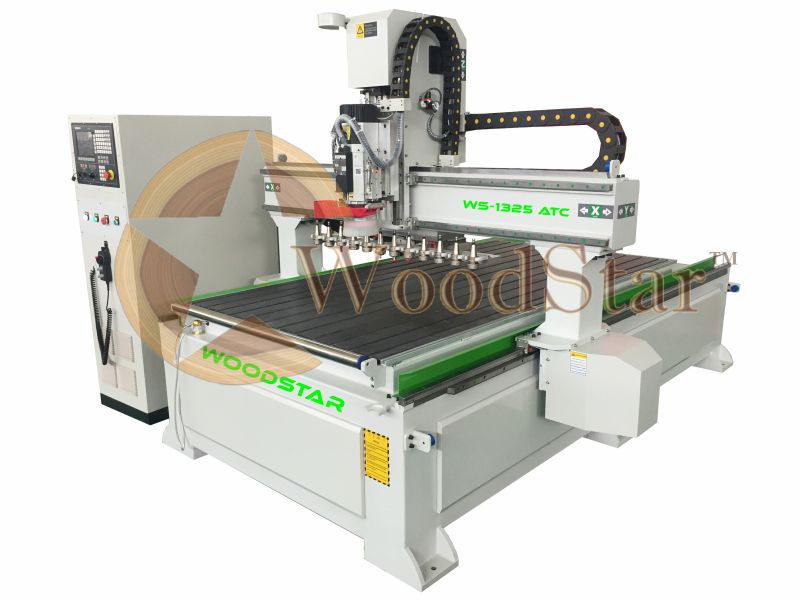

| Type | Mini Cnc Router |
| Weight | 700-800kg |
| Warranty | 2years |
| Country of Origin | India |
| Working Area | 1500×3000×300 Mm |
| tube structure | Heavy weld tube structure |
| kw | 9.0 kw ATC Air Cooled Spindle 24000 RPM |
| Horizontal spindle | 6.0Kw with 2 holders |
| VFD | Fuling VFD |
| LNC control | Taiwan LNC control system with handwheel |
| Leadshine | Leadshine 1500W AC- Servo Motor and drive with brake |
| Rapid speed | 45,000 mm/min |
| Working speed | 25,000 mm/min |
| Linear Rail | Taiwan 25 Mm High Load Linear Rail and Bearing |
| Taiwan Tbi | Taiwan Tbi 32mm Z Ball Screw |
| Cables | GERMAN LAPP cables |
| Helical Harden | 1.25 M helical harden rack and pinion |
| Gearbox | JAPAN Shimpo Pl Gearbox |
| Vacuum table | Vacuum table with 11kw air vacuum pump |
| Air Pump | 5.5kw air pump with two bags Dust collector |
| Support program | Support program: G codes and M codes |
| Software | Artcam and v carve aspire |
| Lubrication | Auto Oil lubricating system |
| Accessories | Standard tools and accessories include |
| Product Code | WSR1325SERVO HT |
| Port | CHENNAI |
| Payment Terms | T/T |
| Delivery Time | 45 DAYS |
| Packaging Details | 3300 X 2300 X 2200 MM |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Allen key toolbox, ball nose tools 6 no’s, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors,
- Transportation
- 12,000 + designs (800 GB)
- Gross weight 1800 kgs, Total power 9.0 Hp
- Overall dimension: 3200 x 2300 x 2300 mm
- PRICE : 21,18,000 + GST18%
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Distributor, Importer |
| Country of Origin | India |
| Voltage | 220V |
| Driven Type | Electric |
| Working area | 1300 × 2500 × 200 mm |
| Rated Frequency | 50 Hz |
| Phase | Single |
| Brand Name | Woodstar |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Details :
- 5 kw Air Cooled Spindle
- Innovance inverter
- Richauto A11 DSP Remote Controller
- LEADSHINE Stepper Motor and Drive
- Belt Timing Pully
- T slot Aluminium Table
- TAIWAN HIWIN 20 linear Rail
- 25 Helical Rack and Pinion System
- Standard Tools and accessories
- Stabilizer
- Design – 800 GB (10,000+)
MOQ : 1 piece
| Business Type | Manufacturer, Exporter |
| Brand Name | woodstar |
| Driven Type | Elecric |
| Color | Red |
| Condition | New |
| Rated Power | 5-7kw, 3-5kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 1500 X 2500 X 300 Mm |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1500 X 2500mm |
| Warrenty | 2years |
| Moving speed | 45 M/min |
| Speed | 15 M/min |
| Traveling Size X Axis | 1300 |
| Traveling SizeY Axis | 2500 |
| Product Code | NAGAPATTINAM CNC WOOD CARVIING ROUTER |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

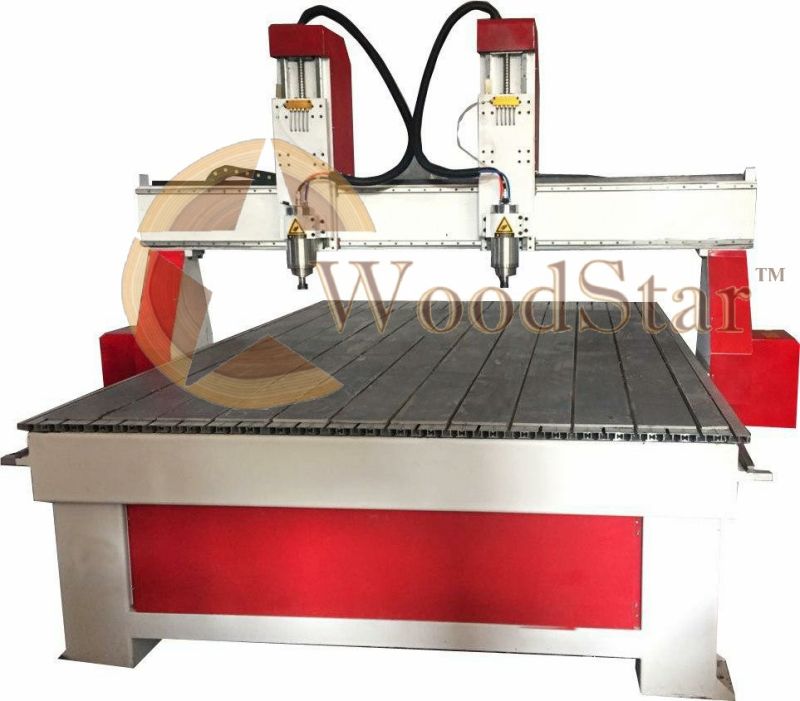

cnc router wsr-1525 douoble head stepper
working area: 1500 x 2500 x 300 mm
heavy weld tube structure
hqd air cooled spindle 24000 rpm
invt taiwan vfd
richauto a11 cnc control system
yako stepper motor and drive with brake system
rapid speed 25,000 mm / min
working speed 15,000 mm / min
taiwan 20 mm high load linear rail and bearing
taiwan tbi 25mm z ball screw
german lapp cables
1.25 m helical harden rack and pinion.
timing belt gearbox
1.5 mm standard t-slot aluminium with hard pvc
support program: g codes and m codes
software: artcam and v carve aspire
lubrication: manual
voltage 220v, single phase 50hz
standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
12,000+ designs (800 gb)
gross weight 1200 kgs
total power 9.0 hp
overall dimension: 3200 x 2300 x 2300 mm
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Voltage | 220V |
| Automatic Grade | Automatic |
| Working Area | 1300 × 2500 × 200 mm |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Brand Name | Woodstar |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Details :
- 5 kw HSD ITALY Air Cooled Spindle
- FULING inverter
- WEIHONG NK105G3 DSP Remote Controller
- FUJI JAPAN 750W Motor and Drive
- ZD Planetary Gearbox
- T slot Aluminium Table
- TAIWAN HIWIN 25 linear Rail
- 25 Helical Rack and Pinion System
- Standard Tools and accessories
- Stabilizer
- Design – 800 GB (10,000+)
MOQ : 1 piece
| Business Type | Manufacturer, Exporter |
| Brand Name | woodstar |
| Driven Type | Elecric |
| Color | BLUE |
| Condition | New |
| Rated Power | 7-9kw, 5-7kw, 3-5kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 1300 X 2500 X 250 Mm |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1300 X 2500mm |
| Warrenty | 2years |
| Moving speed | 45 M/min |
| Speed | 15 M/min |
| Traveling Size X Axis | 1300 |
| Traveling SizeY Axis | 2500 |

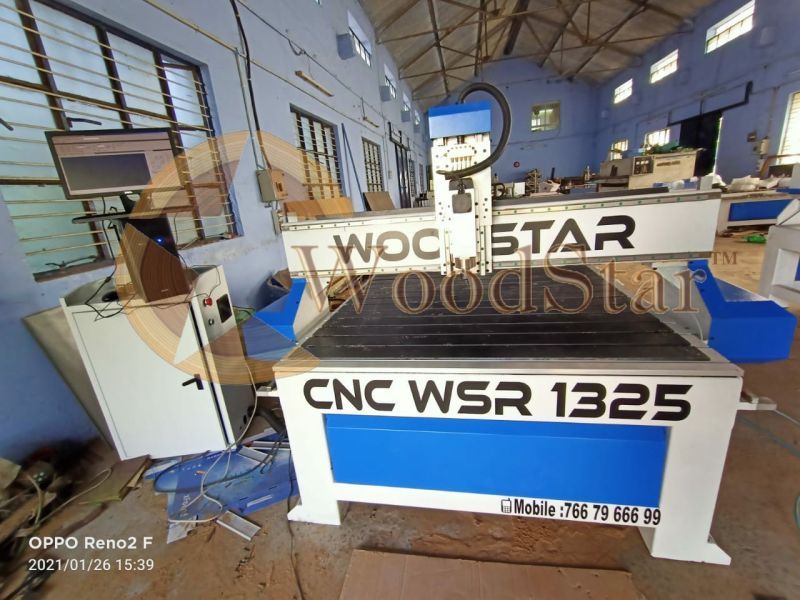

| Product Code | THIRUVANNAMALAI CNC WOOD CARVING ROUTER |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
cnc router wsr-1325 stepper single
working area: 1500 x 2500 x 300 mm
heavy weld tube structure
hqd air cooled spindle 24000 rpm
invt taiwan vfd
richauto a11 cnc control system
yako stepper motor and drive with brake system
rapid speed 25,000 mm / min
working speed 15,000 mm / min
taiwan 20 mm high load linear rail and bearing
taiwan tbi 25mm z ball screw
german lapp cables
1.25 m helical harden rack and pinion.
timing belt gearbox
1.5 mm standard t-slot aluminium with hard pvc
support program: g codes and m codes
software: artcam and v carve aspire
lubrication: manual
voltage 220v, single phase 50hz
standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
12,000+ designs (800 gb)
gross weight 1200 kgs
total power 9.0 hp
overall dimension: 3200 x 2300 x 2300 mm
MOQ : 1 piece
| Business Type | Manufacturer, Exporter |
| Brand Name | woodstar |
| Driven Type | Elecric |
| Color | Black |
| Condition | New |
| Rated Power | 9-12kw, 7-9kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 1500 x 2500 x 300 mm |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1500 x 2500mm |
| Warrenty | 2years |
| Moving speed | 60 m/min |
| Speed | 30 m/min |
| Traveling Size X Axis | 1500 |
| Traveling SizeY Axis | 2500 |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
CNC ROUTER WSR-1325 HIGH SPEED SERVO SINGLE
Working area: 1500 X 2500 X 300 mm
Heavy weld tube structure
HQD Air Cooled Spindle 24000 RPM
INVT TAIWAN VFD
WEIHONG NK105 G2 CNC control system
LEADSHINE 750W AC SERVO Motor and drive with brake system
Rapid speed 25,000 MM / MIN
Working speed 15,000 MM / MIN
TAIWAN 20 mm high load linear rail and bearing
TAIWAN TBI 25mm z ball screw
GERMAN LAPP cables
1.25 M helical harden rack and pinion.
SHIMPO PLANETARY GEARBOX REDUCER
1.5 mm standard T-slot aluminium with hard PVC
Support program: G codes and M codes
Software: Artcam and v carve aspire
Lubrication: Manual
Voltage 220V, Single phase 50hz
Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer
12,000+ designs (800 GB)
Gross weight 1200 kgs
Total power 9.0 Hp
Overall dimension: 3200 x 2300 x 2300 mm
MOQ : 1 1
| Business Type | Manufacturer, Exporter |
| Brand Name | Woodstar |
| Driven Type | Elecric |
| Color | Grey |
| Condition | New |
| Rated Power | 7-9kw, 3-5kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 1300 X 2500 X 250 Mm |
| Voltage | 220 |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50 |
| After-Sales Service Provided | 1 |
| Country of Origin | India |
| Table Size | 1300 X 2500mm |
| Warrenty | 2years |
| Moving speed | 45 M/min |
| Speed | 15 M/min |
| Traveling Size X Axis | 1300 |
| Traveling SizeY Axis | 2500 |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 15 days |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |

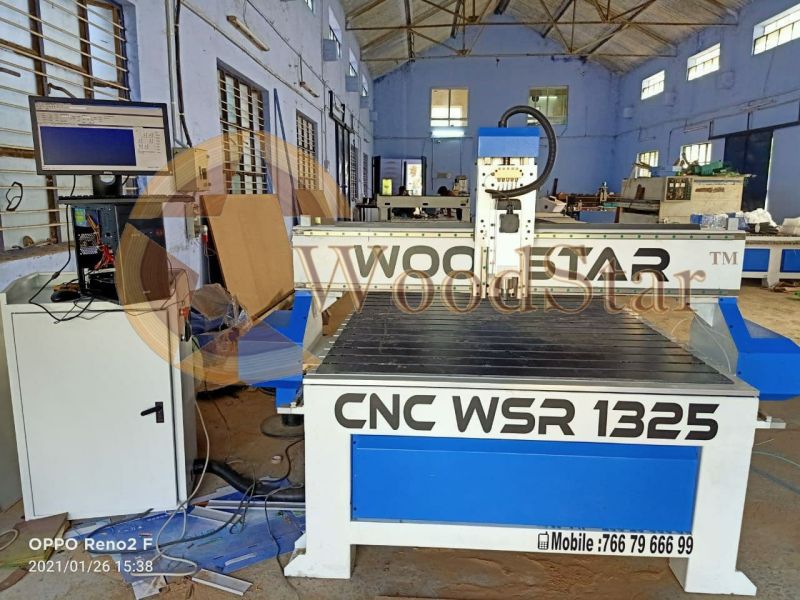

cnc router wsr-1325 stepper single
working area: 1500 x 2500 x 300 mm
heavy weld tube structure
hqd air cooled spindle 24000 rpm
invt taiwan vfd
richauto a11 cnc control system
yako stepper motor and drive with brake system
rapid speed 25,000 mm / min
working speed 15,000 mm / min
taiwan 20 mm high load linear rail and bearing
taiwan tbi 25mm z ball screw
german lapp cables
1.25 m helical harden rack and pinion.
timing belt gearbox
1.5 mm standard t-slot aluminium with hard pvc
support program: g codes and m codes
software: artcam and v carve aspire
lubrication: manual
voltage 220v, single phase 50hz
standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
12,000+ designs (800 gb)
gross weight 1200 kgs
total power 9.0 hp
overall dimension: 3200 x 2300 x 2300 mm
| #woodstar cnc router 1325 servo wood carving machine in ariyalur |
| #woodstar cnc router 1325 servo wood carving machine in chennai |
| #woodstar cnc router 1325 servo wood carving machine in coimbatore |
| #woodstar cnc router 1325 servo wood carving machine in cuddalore |
| #woodstar cnc router 1325 servo wood carving machine in dharmapuri |
| #woodstar cnc router 1325 servo wood carving machine in dindigul |
| #woodstar cnc router 1325 servo wood carving machine in erode |
| #woodstar cnc router 1325 servo wood carving machine in kallakurichi |
| #woodstar cnc router 1325 servo wood carving machine in kancheepuram |
| #woodstar cnc router 1325 servo wood carving machine in kanyakumari |
| #woodstar cnc router 1325 servo wood carving machine in karur |
| #woodstar cnc router 1325 servo wood carving machine in krishnagiri |
| #woodstar cnc router 1325 servo wood carving machine in madurai |
| #woodstar cnc router 1325 servo wood carving machine in mayiladuthurai |
| #woodstar cnc router 1325 servo wood carving machine in nagapattinam |
| #woodstar cnc router 1325 servo wood carving machine in namakkal |
| #woodstar cnc router 1325 servo wood carving machine in nilgiris |
| #woodstar cnc router 1325 servo wood carving machine in perambalur |
| #woodstar cnc router 1325 servo wood carving machine in pudukottai |
| #woodstar cnc router 1325 servo wood carving machine in ramanathapuram |
| #woodstar cnc router 1325 servo wood carving machine in salem |
| #woodstar cnc router 1325 servo wood carving machine in sivaganga |
| #woodstar cnc router 1325 servo wood carving machine in sivagangai |
| #woodstar cnc router 1325 servo wood carving machine in thanjavur |
| #woodstar cnc router 1325 servo wood carving machine in theni |
| #woodstar cnc router 1325 servo wood carving machine in thiruvannamalai |
| #woodstar cnc router 1325 servo wood carving machine in thiruvarur |
| #woodstar cnc router 1325 servo wood carving machine in thoothukudi |
| #woodstar cnc router 1325 servo wood carving machine in tiruchirappalli |
| #woodstar cnc router 1325 servo wood carving machine in tirunelveli |
| #woodstar cnc router 1325 servo wood carving machine in tiruppur |
| #woodstar cnc router 1325 servo wood carving machine in tiruvallur |
| #woodstar cnc router 1325 servo wood carving machine in tuticorin |
| #woodstar cnc router 1325 servo wood carving machine in vellore |
| #woodstar cnc router 1325 servo wood carving machine in villupuram |
| #woodstar cnc router 1325 servo wood carving machine in virudhunagar |
| #woodstar cnc router 1325 servo wood carving machine in pondicherry |
| #woodstar cnc router 1325 servo wood carving machine in tamil nadu |
