CNC Wood Cutting Machine

CNC Wood Cutting Machine
Price : 3.80 Lac - 4.60 Lac / piece
Get Best Price

MOQ : 1 piece

Business Type Manufacturer, Exporter
Automatic Grade Fully Automatic, Automatic, Semi Automatic
Spindle Power 3.5 KW
Job Material Wood, MDF, HDF, Plywood, Foam Board, Sign Board, Acrylic
Click to view more

Preferred Buyer From

Location India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries

Product Details

Spindle Head Type
Single Spindle
Brand Name
WOODSTAR
Country of Origin
INDIA
Driven Type
MOTOR
Color
GREEN
Condition
New
Rated Power
9.0 HP
Voltage
220v
Weight
1000-2000kg
After-Sales Service Provided
YES
Warrenty
1year, 2 Years
Z Axis Working Area
300 Mm
Machine Type
3 Axis
Product Code
WOODSTAR CNC ROUTER WOOD CARVING MACHIN
Port
CHENNAI
Payment Terms
T/T
Delivery Time
15 DAYS
Packaging Details
3100 x 2100 x 2100 mm
wooden box

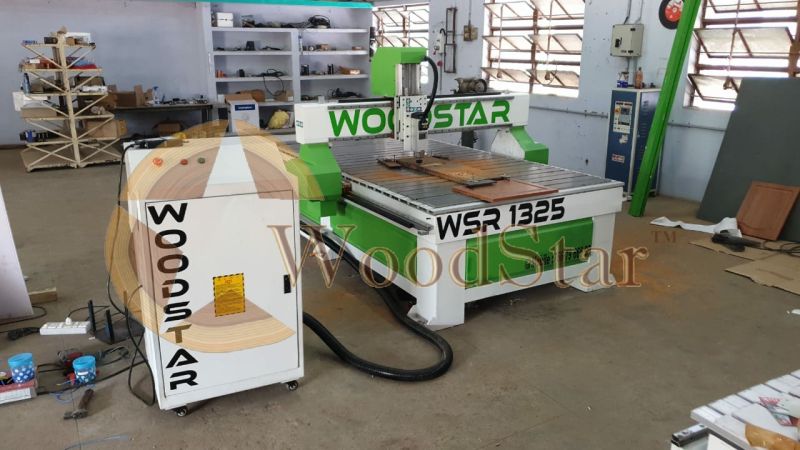

WOODSTAR CNC ROUTER WSR-1325 STEPPER SINGLE CARVING MACHINE



 Working area: 1500 X 2500 X 300 mm



 Heavy weld tube structure



 HQD Air Cooled Spindle 24000 RPM



 INVT TAIWAN VFD



 RICHAUTO A11 CNC control system



 YAKO STEPPER Motor and drive with brake system



 Rapid speed 25,000 MM / MIN



 Working speed 15,000 MM / MIN



 TAIWAN 20 mm high load linear rail and bearing



 TAIWAN TBI 25mm z ball screw



 GERMAN LAPP cables



 1.25 M helical harden rack and pinion.



 Timing belt gearbox



 1.5 mm standard T-slot aluminium with hard PVC



 Support program: G codes and M codes



 Software: Artcam and v carve aspire



 Lubrication: Manual



 Voltage 220V, Single phase 50hz



 Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer



 12,000+ designs (800 GB)



 Gross weight 1200 kgs



 Total power 9.0 Hp



 Overall dimension: 3200 x 2300 x 2300 mm
