1325S CNC Router Machine

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Automatic Wood CNC Router Machine and Wood Cnc Router from Coimbatore.

3.80 Lac - 6.20 Lac / piece

1 Number (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier, Importer
Material CNC ROUTER MACHINE
Brand Name WOODSTAR,WOODSTAR
Driven Type Electric
Color Black, Brown, Grey
Condition New
Rated Power 7-9kw, 9-12kw
Automatic Grade Automatic, Manual, Semi Automatic
Application Aluminium Cutting, Metal Material Cutting, Plastic Cutting, Wood Cutting
Certification ISO 9001:2015
Voltage 220V, 380V
Type Cnc Router Machine,AUTOMATIC, SEMI-AUTOMATIC
Weight 1000-2000kg
Warranty 1 YEAR
After-Sales Service Provided YES
Country of Origin India,India
Warrenty 1 Year, 2 Years
Size 1300*2500
Product Code wsr1325seco
Port chennai
Payment Terms T/T
Delivery Time 25 DAYS
Packaging Details 3200 x 1800 x 2100 mm

Click to view more

Preferred Buyer From

Location Worldwide



woodstar cnc router wsr-1325 stepper single carving machine



 working area: 1500 x 2500 x 300 mm

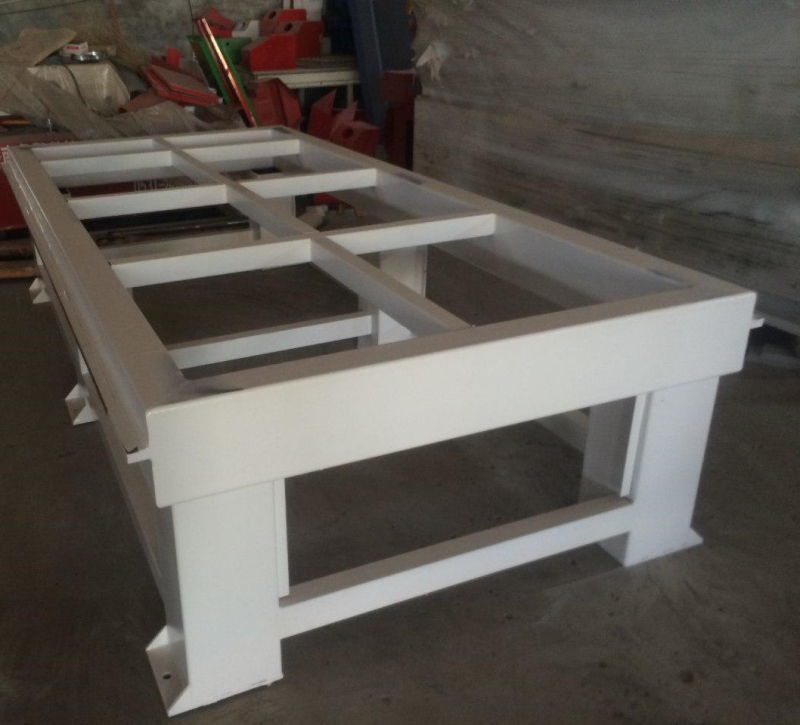

 heavy weld tube structure



 hqd air cooled spindle 24000 rpm



 invt taiwan vfd



 richauto a11 cnc control system



 yako stepper motor and drive with brake system



 rapid speed 25,000 mm / min



 working speed 15,000 mm / min



 taiwan 20 mm high load linear rail and bearing



 taiwan tbi 25mm z ball screw



 german lapp cables



 1.25 m helical harden rack and pinion.



 timing belt gearbox



 1.5 mm standard t-slot aluminium with hard pvc



 support program: g codes and m codes



 software: artcam and v carve aspire



 lubrication: manual



 voltage 220v, single phase 50hz



 standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer



 12,000+ designs (800 gb)



 gross weight 1200 kgs



 total power 9.0 hp



 overall dimension: 3200 x 2300 x 2300 mm



Read More...


Yes! I am interested


3.80 Lac - 4.60 Lac / piece

1 Set (MOQ)

Get Best Price
Business Type Manufacturer, Exporter
Brand Name WOODSTAR
Driven Type Electric
Color Light Green, Light White
Condition New
Power 3-6kw
Automation Grade Automatic, Fully Automatic, Manual, Semi Automatic
Usage/Application Wood Cutting
Voltage 110V, 220V
Type Cnc Wood Router
Weight 800-1000kg
Warranty 1year, 2years
After-Sales Service Provided YES
Country of Origin India
Product Code WOODSTAR CNC ROUTER WOOD CARVING MACHIN
Port CHENNAI
Payment Terms T/T
Delivery Time 15 DAYS
Packaging Details 3100 x 2100 x 2100 mm
wooden box

Click to view more

Preferred Buyer From

Location Worldwide

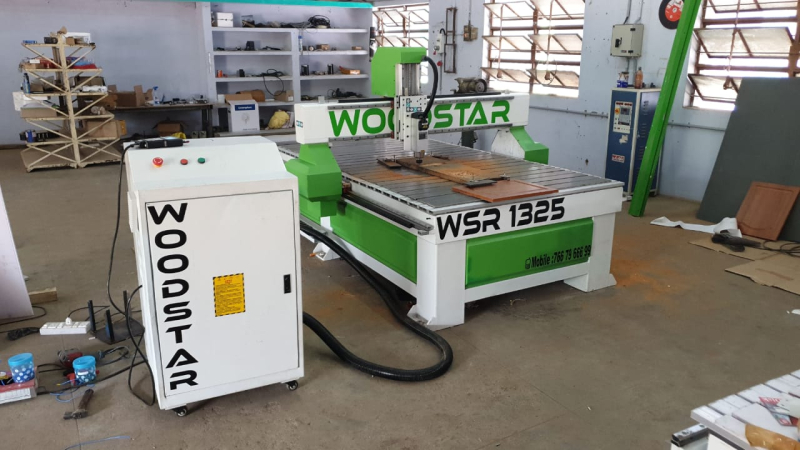

WOODSTAR CNC ROUTER WSR-1325 STEPPER SINGLE CARVING MACHINE



 Working area: 1500 X 2500 X 300 mm



 Heavy weld tube structure



 HQD Air Cooled Spindle 24000 RPM



 INVT TAIWAN VFD



 RICHAUTO A11 CNC control system



 YAKO STEPPER Motor and drive with brake system



 Rapid speed 25,000 MM / MIN



 Working speed 15,000 MM / MIN



 TAIWAN 20 mm high load linear rail and bearing



 TAIWAN TBI 25mm z ball screw



 GERMAN LAPP cables



 1.25 M helical harden rack and pinion.



 Timing belt gearbox



 1.5 mm standard T-slot aluminium with hard PVC



 Support program: G codes and M codes



 Software: Artcam and v carve aspire



 Lubrication: Manual



 Voltage 220V, Single phase 50hz



 Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer



 12,000+ designs (800 GB)



 Gross weight 1200 kgs



 Total power 9.0 Hp



 Overall dimension: 3200 x 2300 x 2300 mm
