1325D CNC Router Machine

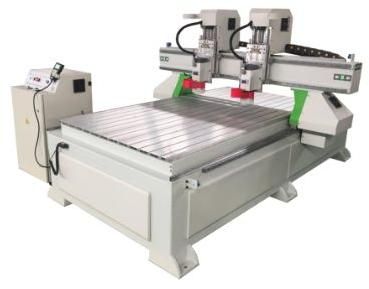

Leading Manufacturers, Exporters, Wholesaler, Distributor, Importer of Eco 1325D CNC Router Machine and Hybrid Servo 1325d Cnc Router Carving Machine from Coimbatore.
| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Voltage | 220V |
| Automatic Grade | Automatic |
| Driven Type | Electric |
| Working area | 1300 × 2500 × 200 mm |
| Phase | Single Phase |
| Frequency | 50hz |
| Brand Name | Woodstar |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Details :
- 5 kw Air Cooled Spindle
- Innovance inverter
- Richauto A11 DSP Remote Controller
- LEADSHINE Stepper Motor and Drive
- Belt Timing Pully
- T slot Aluminium Table
- TAIWAN HIWIN 20 linear Rail
- 25 Helical Rack and Pinion System
- Standard Tools and accessories
- Stabilizer
- Design – 800 GB (10,000+)
| Business Type | Manufacturer, Exporter |
| Brand Name | Woodstar |
| Driven Type | Elecric |
| Color | Grey |
| Condition | New |
| Rated Power | 7-9kw |
| Automatic Grade | Semi Automatic, Fully Automatic, Automatic |
| Size | 2500x1300mm |
| Voltage | 220V |
| Type | Cnc Wood Carving Machine |
| Weight | 1000-2000kg |
| Frequency | 50Hz |
| After-Sales Service Provided | Yes |
| Country of Origin | India |
| Table Size | 2500 X 1300 Mm |
| Warrenty | 2years, 1year |
| Moving speed | 45 Mm/min |
| Speed | 15 Mm/min |
| Traveling Size X Axis | 1300mm |
| Traveling SizeY Axis | 2500mm |
| Working area | 1300 × 2500 × 200 mm |
| Phase | Single Phase |
| Product Code | WOODSTAR WSR1325DSERVO |
| Port | chennai |
| Payment Terms | T/T |
| Delivery Time | 21 days |
| Packaging Details | 3200x 2300x 2100mm |
Preferred Buyer From
| Location | India ( Tamil Nadu, Assam, Arunachal Pradesh, Tripura, Sikkim, Nagaland, Mizoram, Meghalaya, Manipur, Kerala only) & All other countries |
Working area: 1500 X 2500 X 300 mm
Heavy weld tube structure
HQD Air Cooled Spindle 24000 RPM
INVT TAIWAN VFD
RICHAUTO A11 CNC control system
YAKO SERVO Motor and drive with brake system
Rapid speed 25,000 MM / MIN
Working speed 15,000 MM / MIN
TAIWAN 20 mm high load linear rail and bearing
TAIWAN TBI 25mm z ball screw
GERMAN LAPP cables
1.25 M helical harden rack and pinion.
Timing belt gearbox
1.5 mm standard T-slot aluminium with hard PVC
Support program: G codes and M codes
Software: Artcam and v carve aspire
Lubrication: Manual
Voltage 220V, Single phase 50hz
Standard tools and accessories include Allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, Servo Stabilizer
12,000+ designs (800 GB)
Gross weight 1200 kgs
Total power 9.0 Hp
Overall dimension: 3200 x 2300 x 2300 mm
